Sunroof / Moonroof: Adjustments

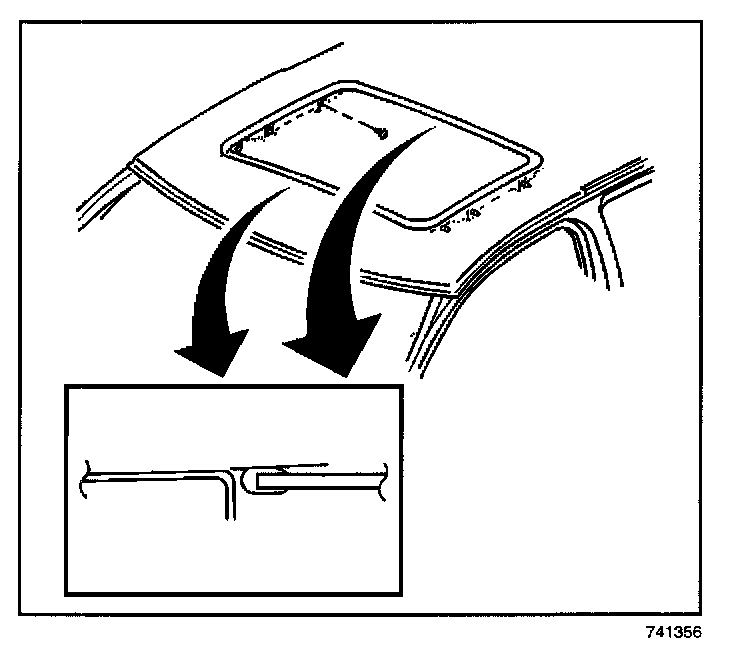

SUNROOF GLASS HEIGHT AND OPENING FIT ADJUSTMENT




1. Slide the sunroof sunshade to the open position.
2. Adjust the sunroof glass panel to the fully closed position.
3. Separately loosen the 6 sunroof glass panel screws (3 each side).
4. Individually adjust the 4 corners of the sunroof glass panel.
5. Adjust the front of the sunroof glass panel to 2.0 mm (0.079 in) below the top surface of the root panel.
6. Adjust the rear of the sunroof glass panel to 2 mm (1/8 in) above the top surface of the root panel.

NOTE: Refer to Fastener Notice in Service Precautions.

7. Tighten the sunroof glass panel screws.

Tighten
Tighten the sunroof glass panel screws to 4 N.m (35 lb in).
