Home >> Buick >> 2002 >> Rendezvous V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Fuse Block - Underhood >> C3

C3

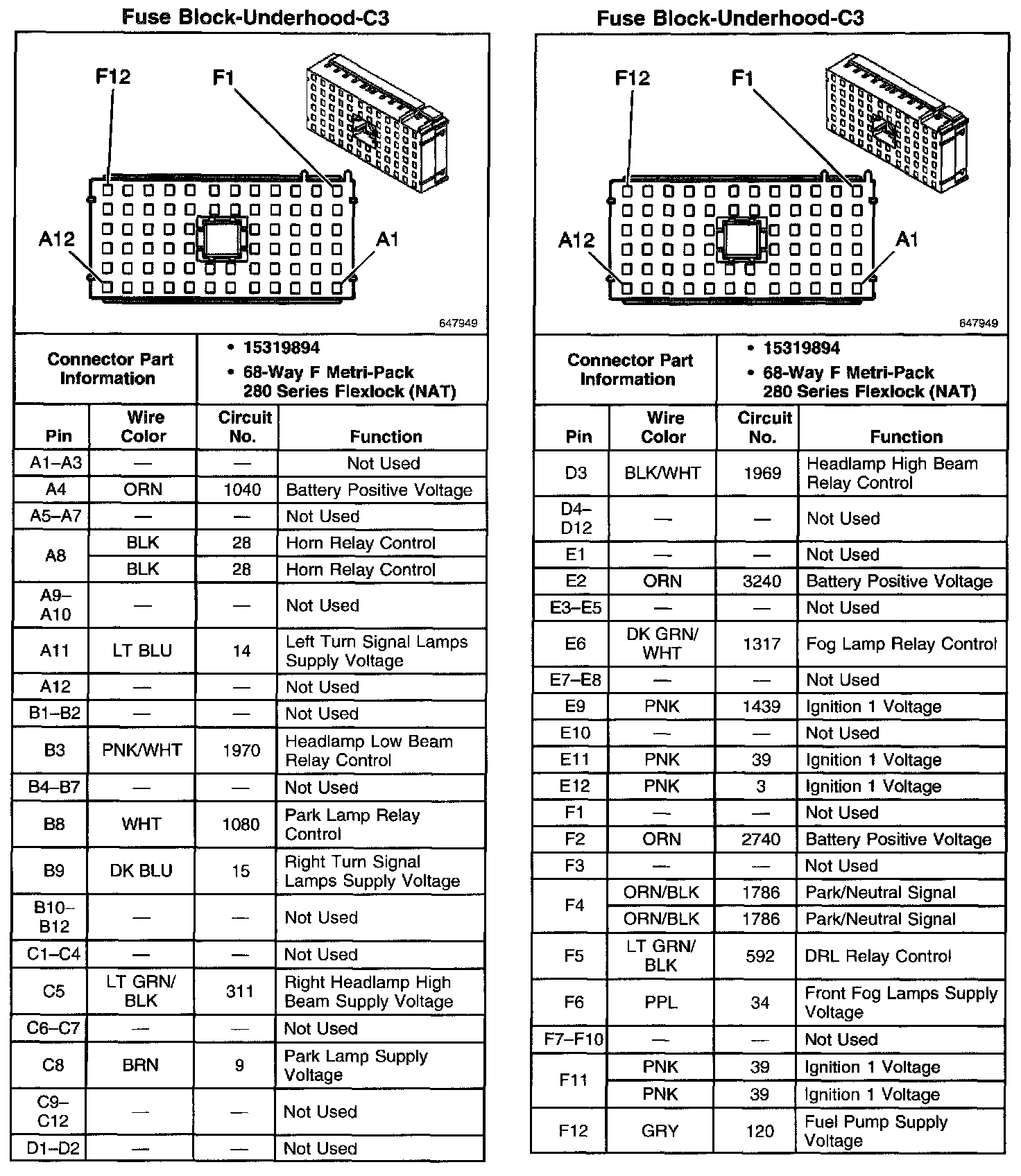

Fuse Block - Underhood - C3:
