Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Corvette V8-350 5.7L DOHC VIN J MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Details
>>
Sport Seat Fuse, Power Lock Fuse & A/C Prog Fuse
Sport Seat Fuse, Power Lock Fuse & A/C Prog Fuse

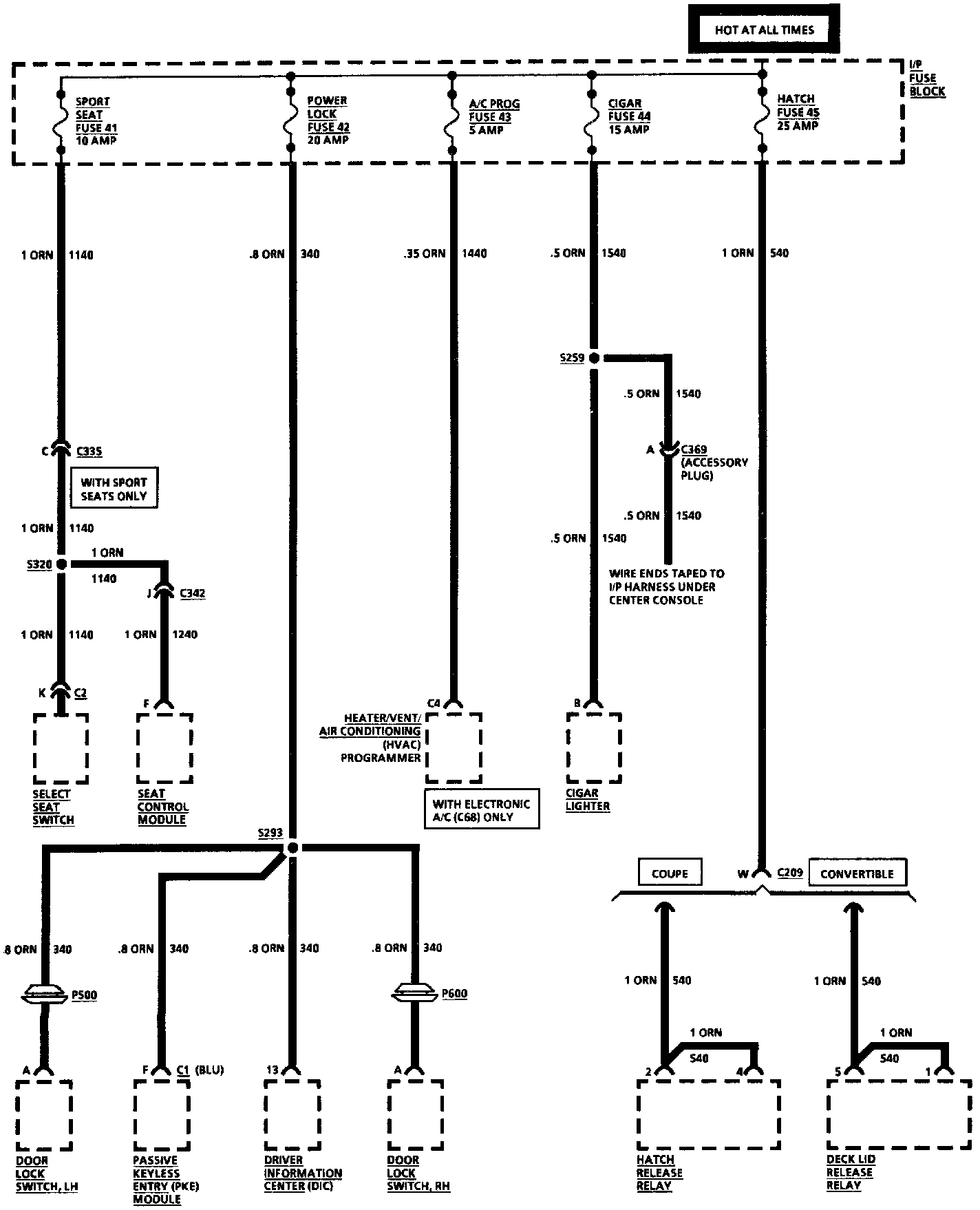

Sport Seat Fuse, Power Lock Fuse, A/C PROG Fuse, Cigar & Hatch Fuse:
