Home >> Chevrolet >> 1996 >> Cavalier/Z24 L4-144 2.4L DOHC VIN T SFI >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Starter Motor

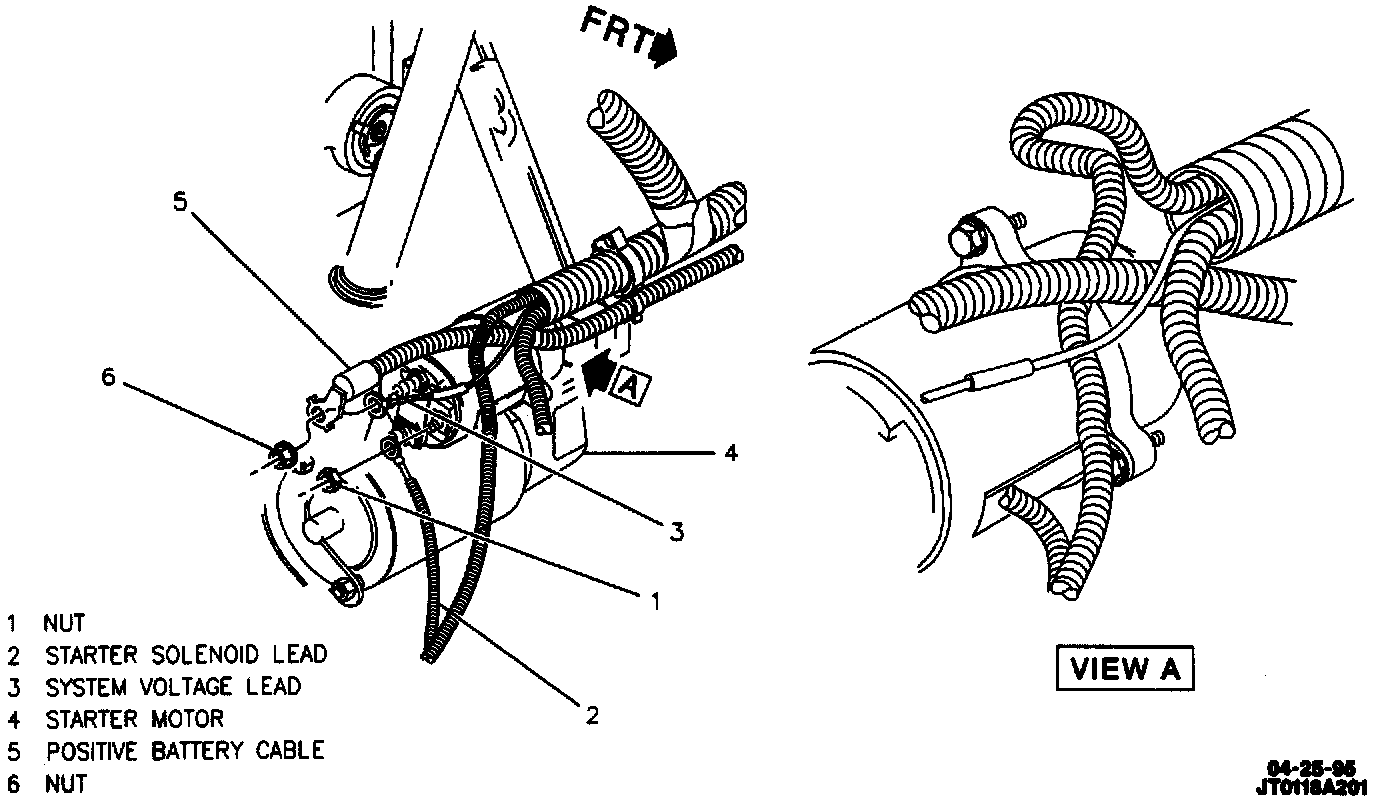

Starter Motor

Lower Front Of Engine:
