Uplevel





Inline Harness Connector End Views

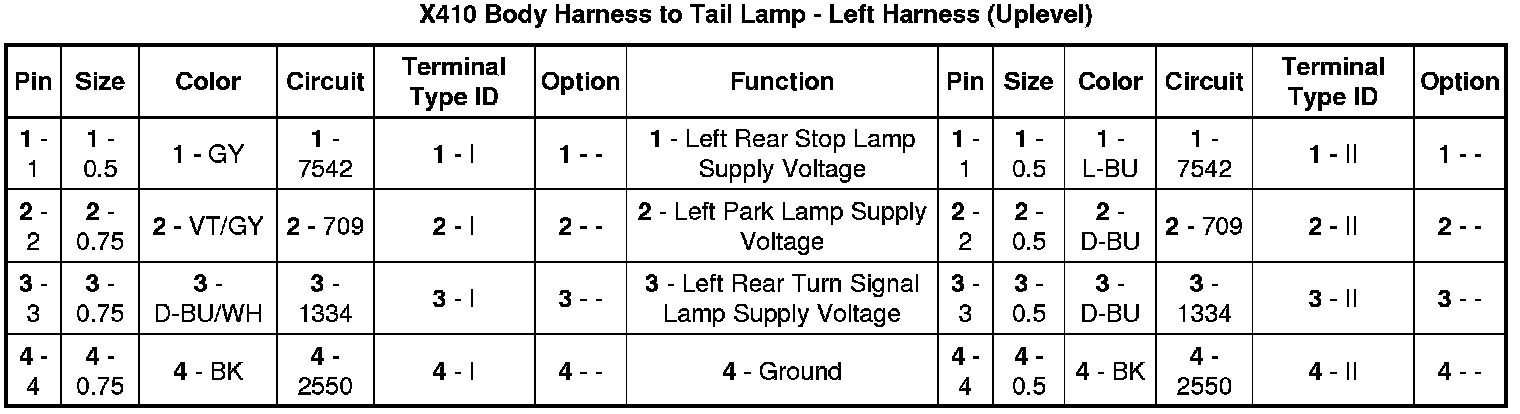

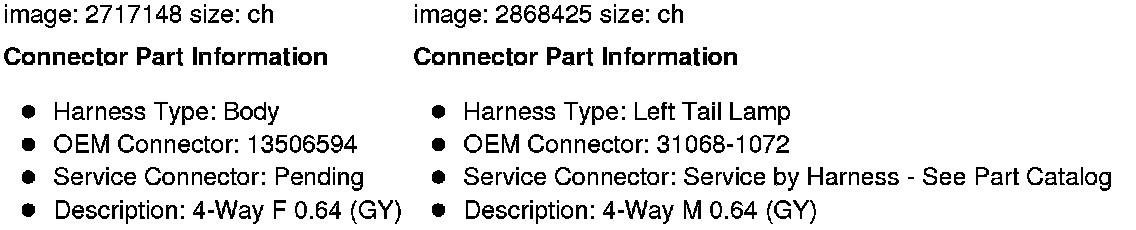

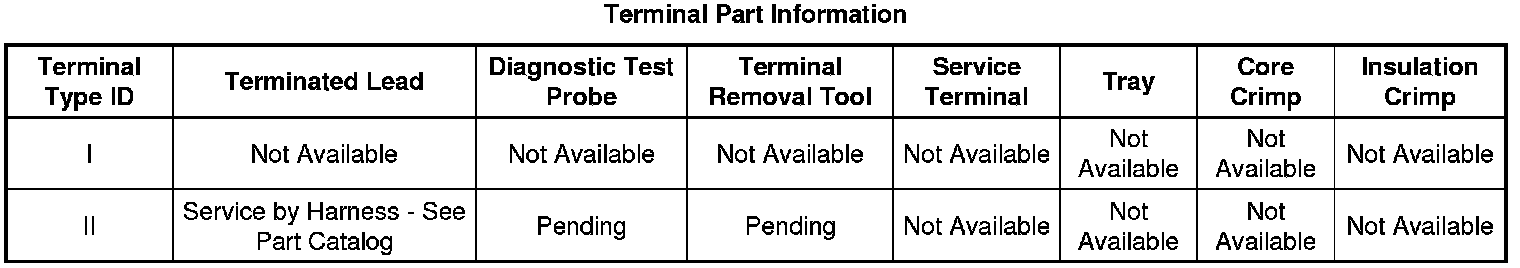

X410 Body Harness to Tail Lamp - Left Harness (Uplevel)
