Backup Lamp Unit Replacement

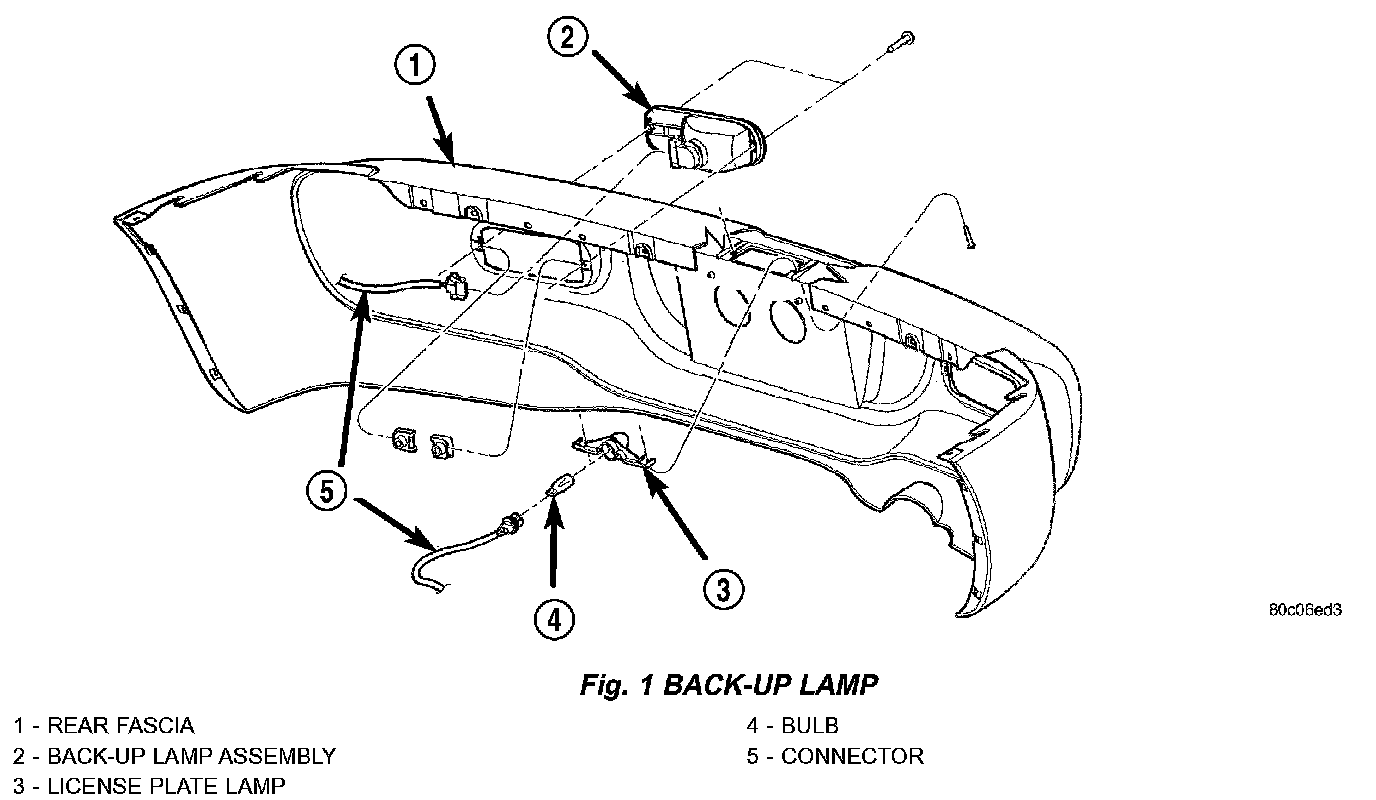

Fig. 1 Back-Up Lamp:

REMOVAL
1. Remove screws attaching the back-up lamp assembly to the fascia.
2. Remove back up lamp assembly.
3. Remove the bulb socket from the lamp housing by rotating the socket counter-clockwise until the socket is free of the housing.

INSTALLATION
1. Install the bulb socket into the lamp housing by rotating the socket clockwise until fully seated.
2. Place back-up lamp assembly into position.
3. Test lamp operation.
4. Install screws attaching back-up lamp unit to fascia.
