Front Seat

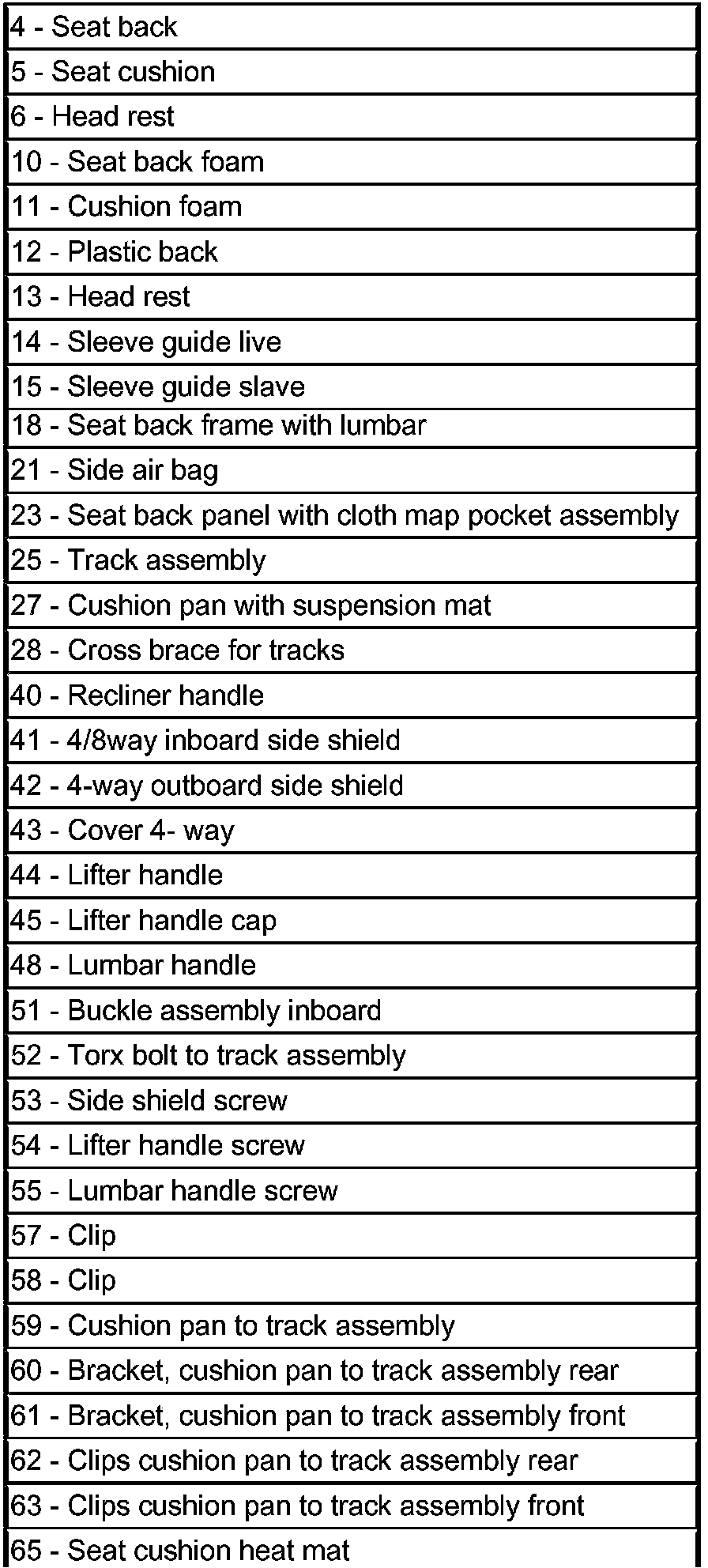

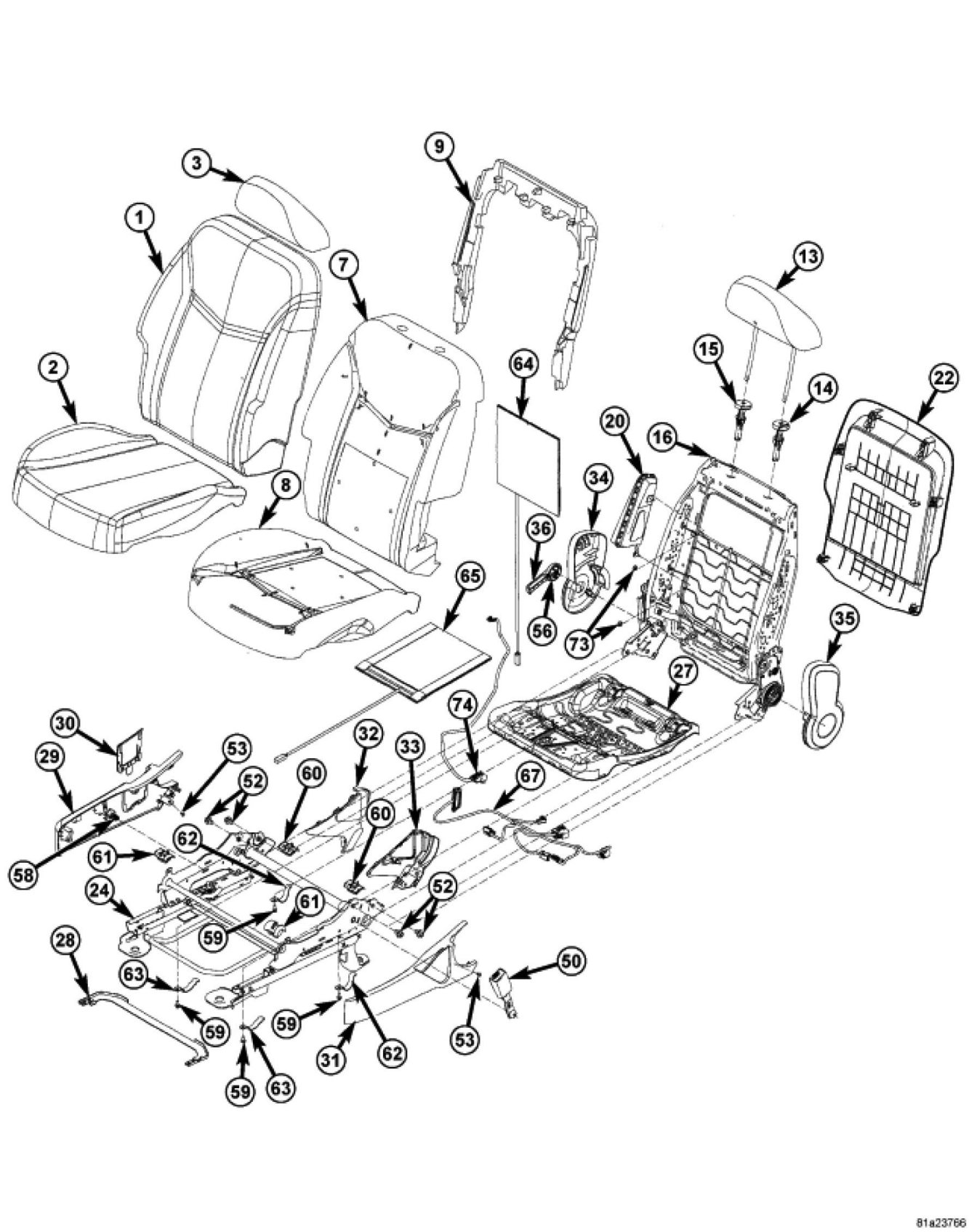

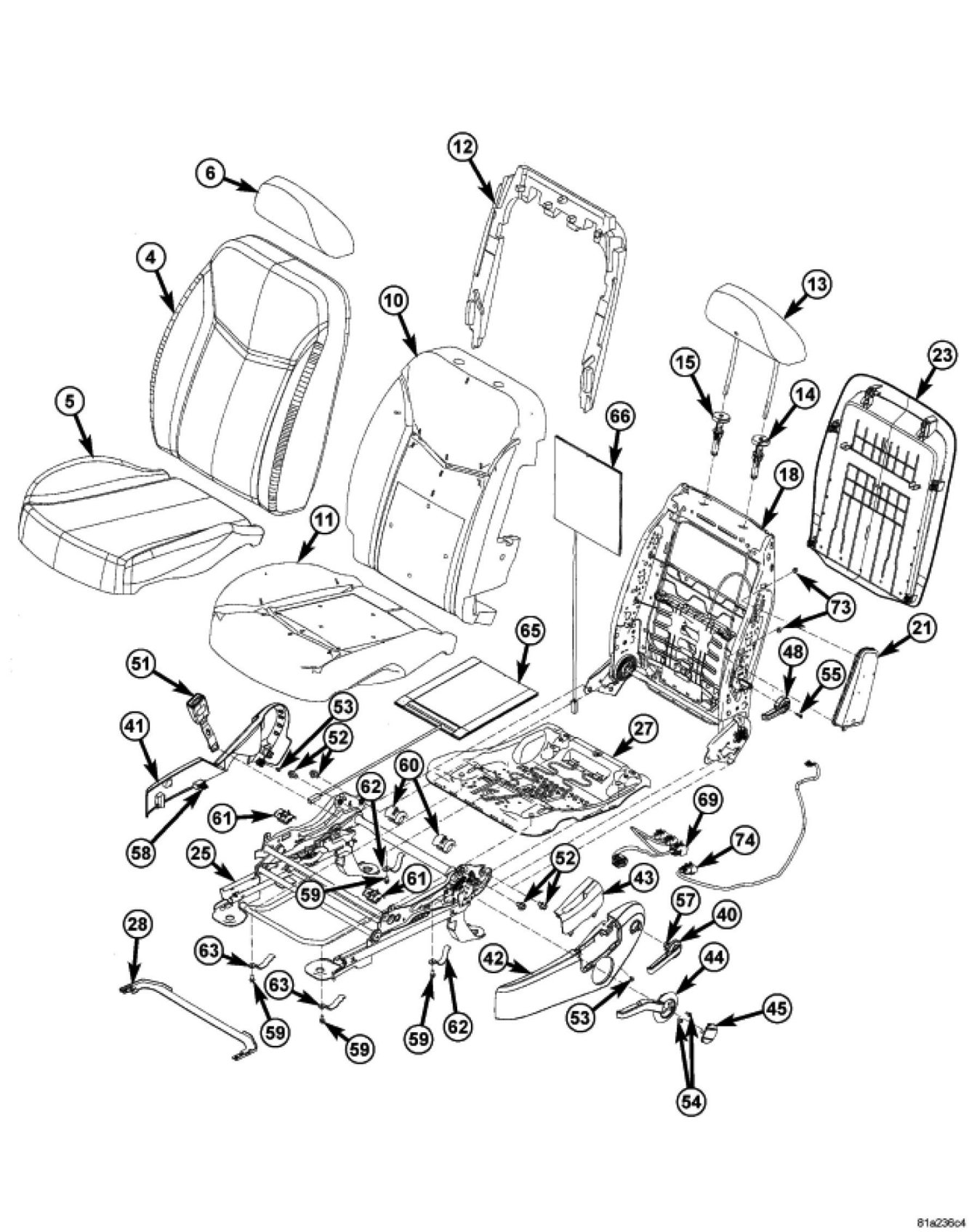

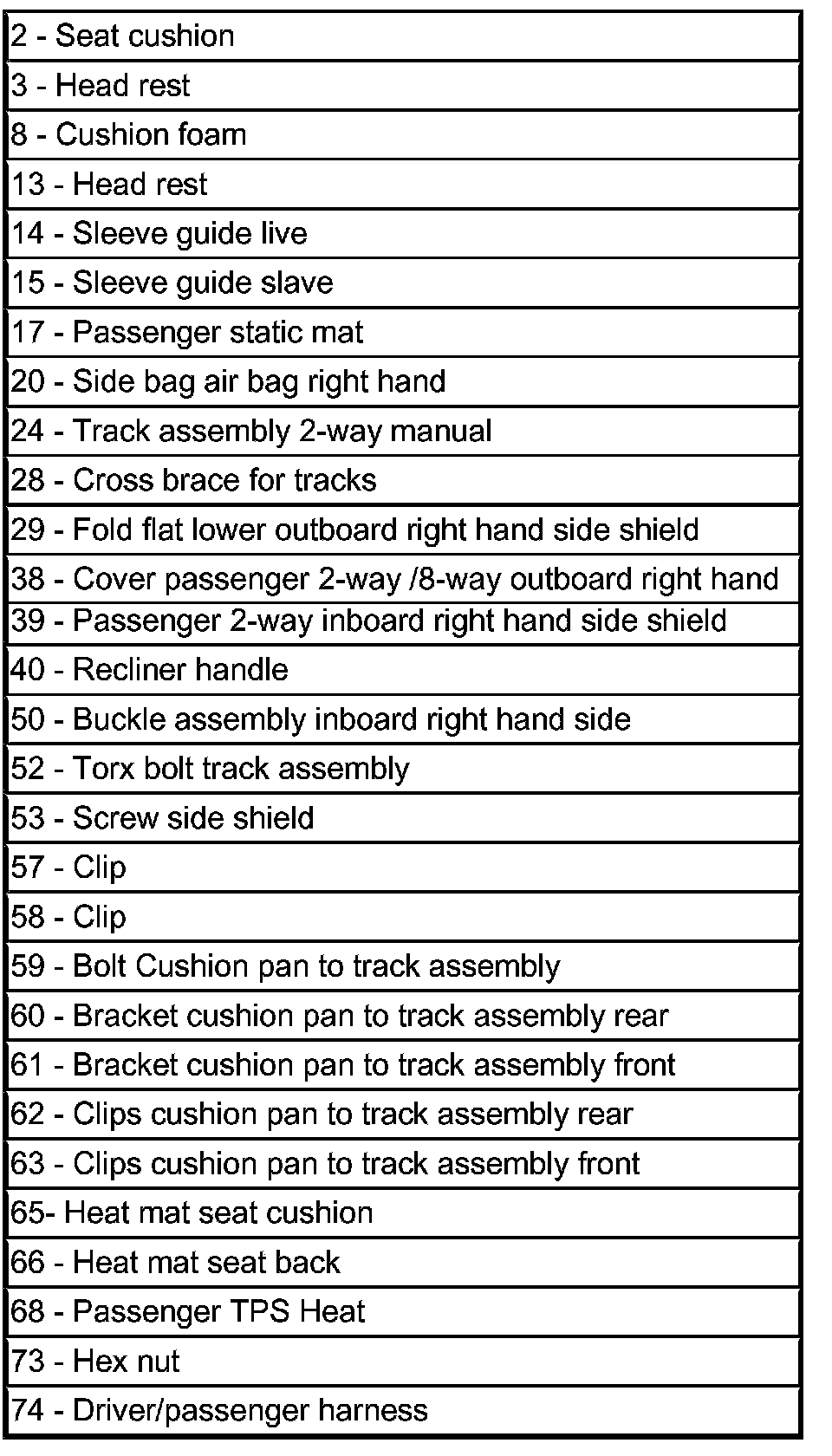

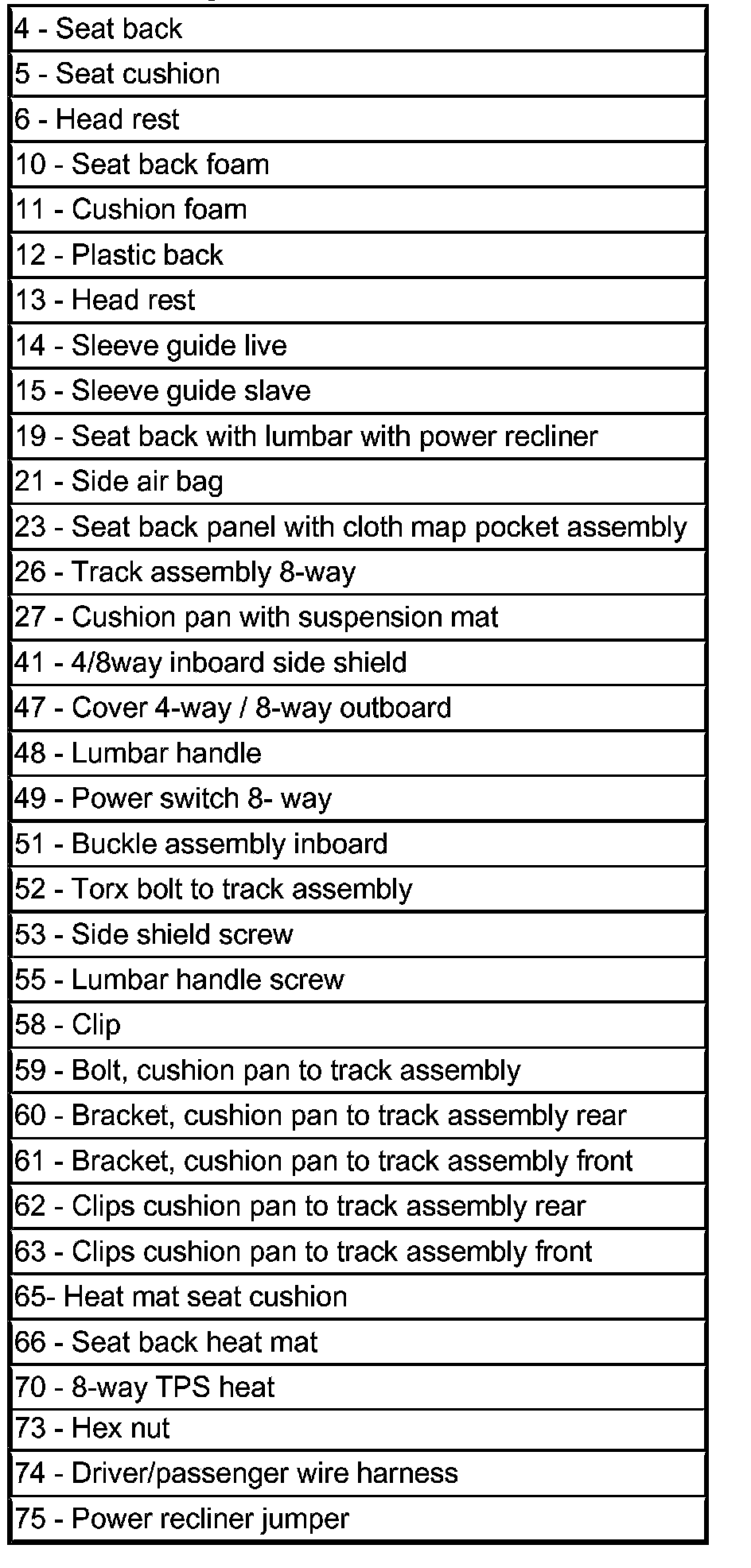

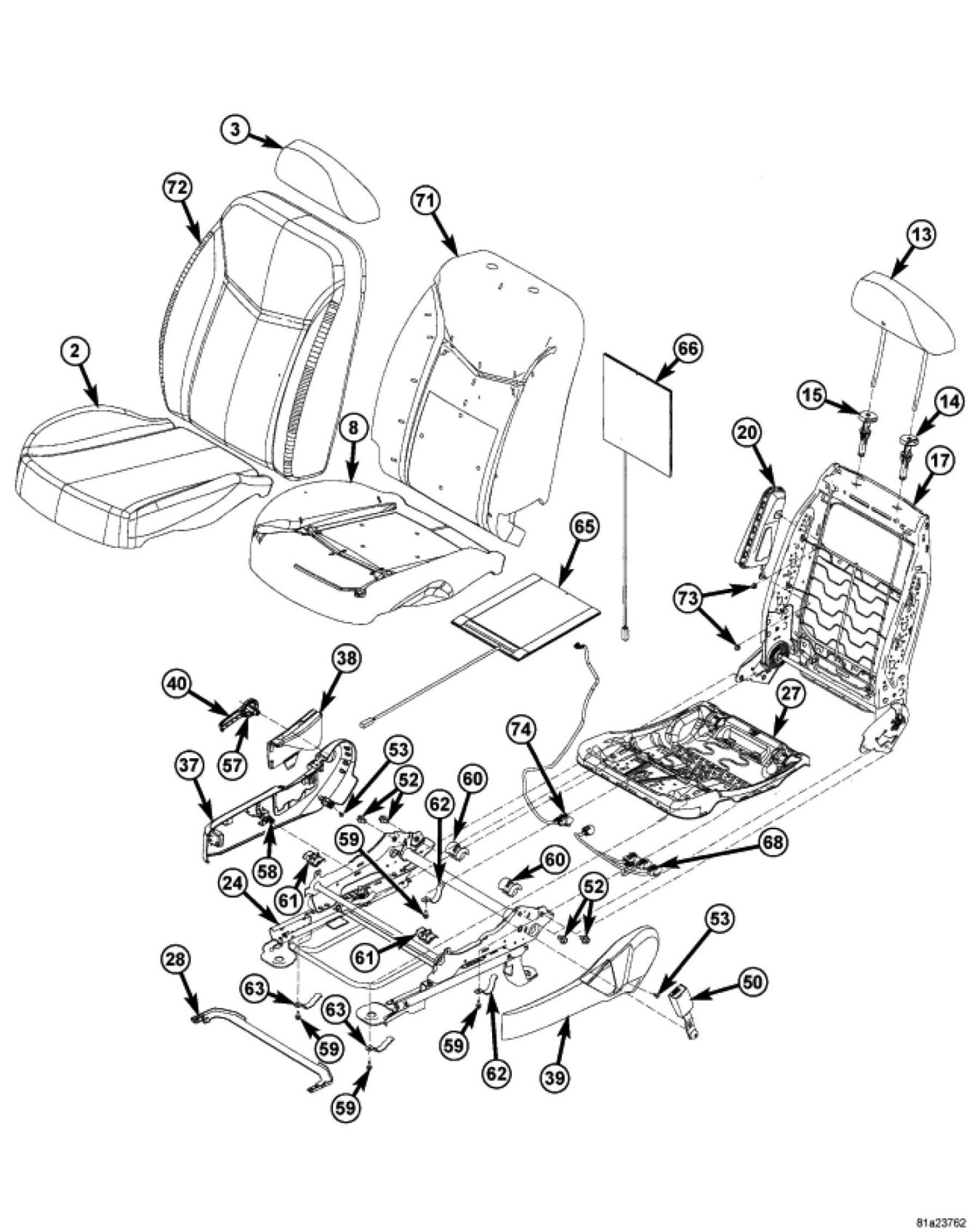

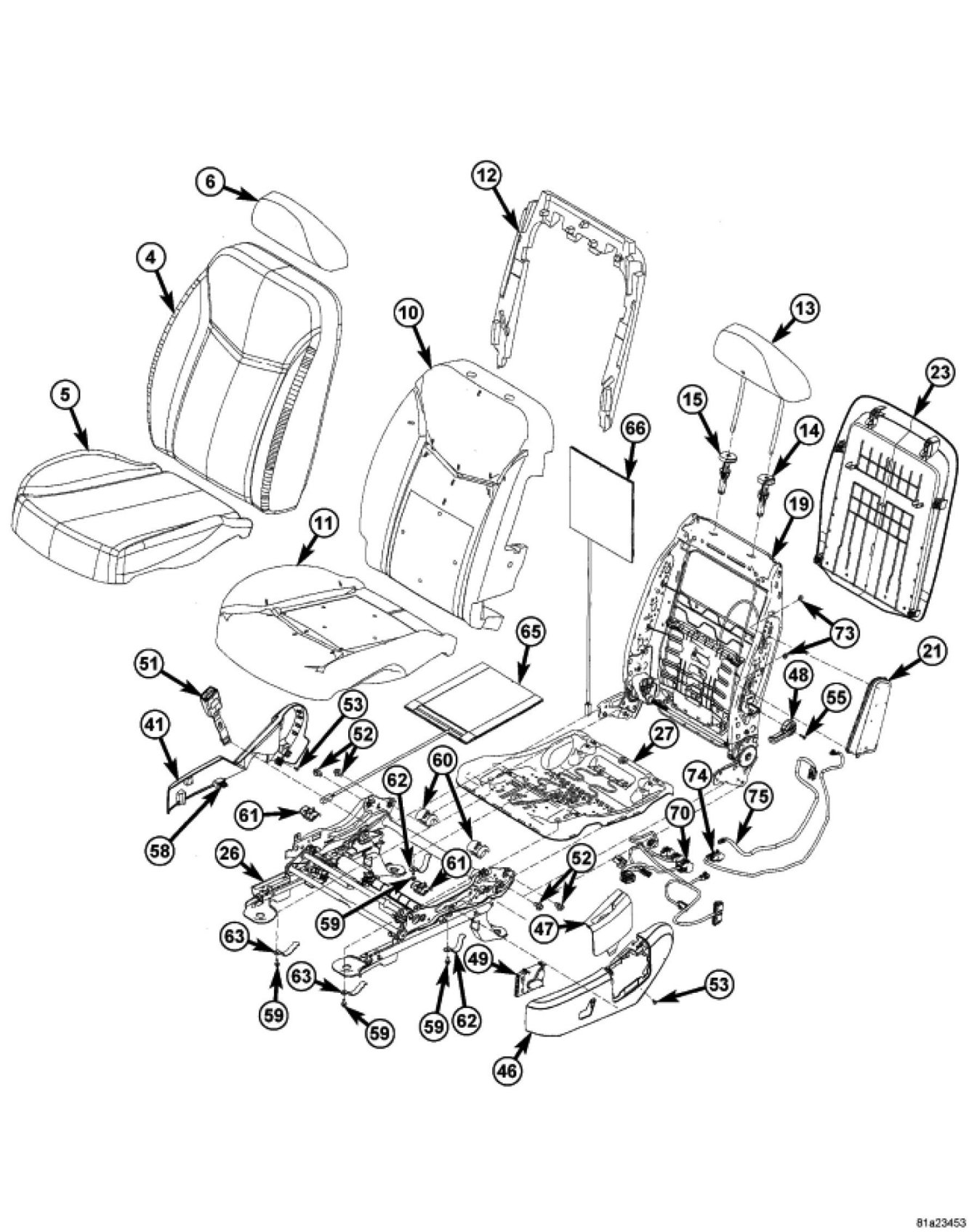

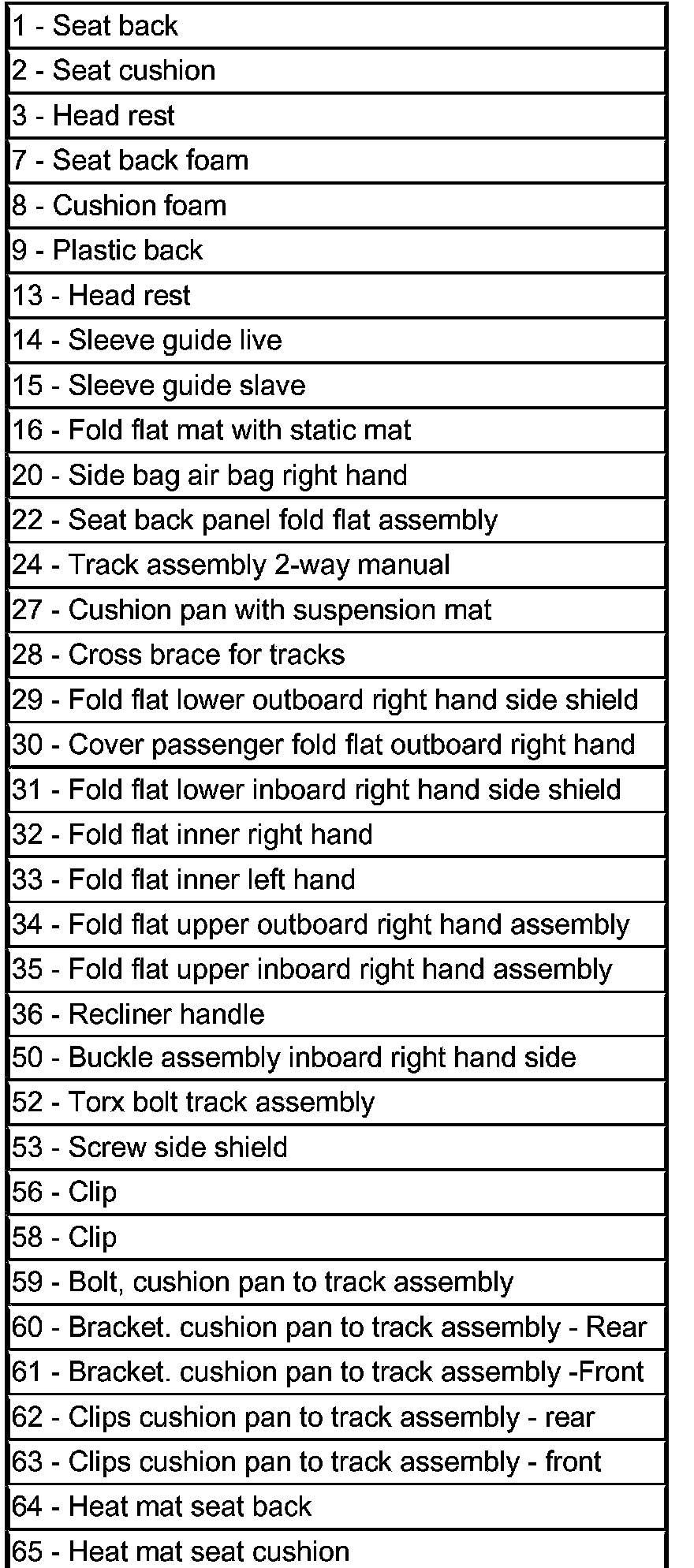

DESCRIPTION

WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.















WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.











WARNING: Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.















WARNING: Discard and replace the seat back bolts (18) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.
