P1771

Test 1 Through 2:

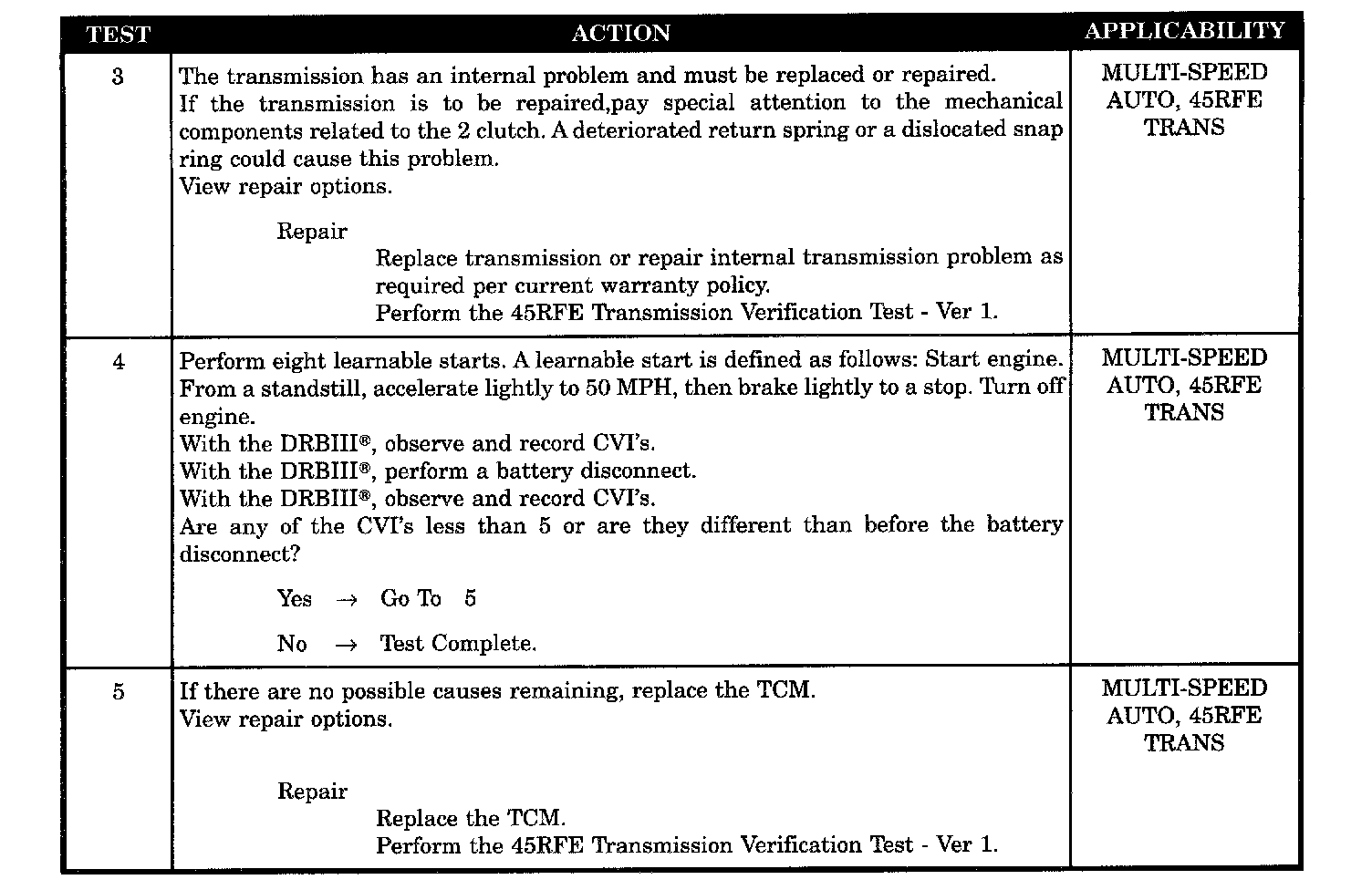

Test 3 Through 5:

Symptom:
P1771 -INADEQUATE ELEMENT VOLUME 2C

When Monitored and Set Condition
P1771-INADEQUATE ELEMENT VOLUME 2C

When Monitored:Whenever the engine is running. The 2C volume is updated during a 3-2 kickdown with throttle angle between 20 and 54 degrees. Trans temp must be at least 110°F.

Set Condition: When the 2C volume falls below 5.

POSSIBLE CAUSES
INCORRECT FLUID LEVEL
INTERNAL TRANSMISSION PROBLEM - 2C VOLUME LOW
TCM- 2C VOLUME LOW
