Removal

REMOVAL










1. Raise and support the vehicle.

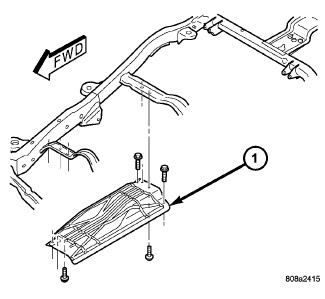

2. Remove the screws and nuts holding the heat shields (1) to the frame and floor pan.
3. Slide the heat shield (1) out around the exhaust system.
