Variable Induction Control Valve

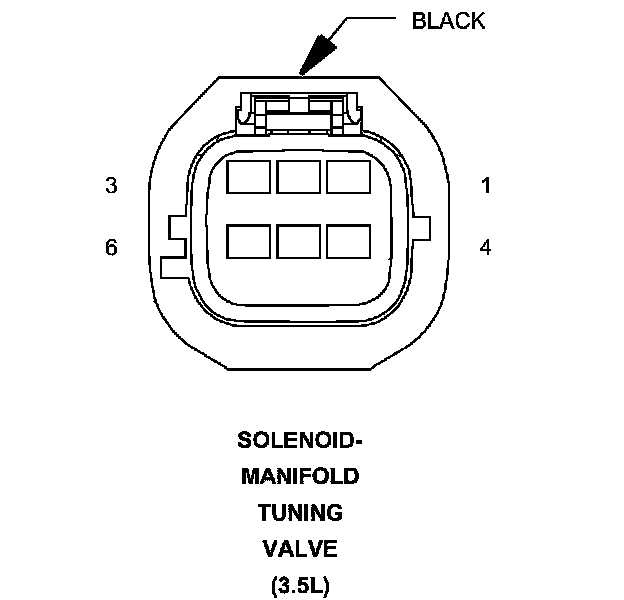

Connector (3.5L) - (ENGINE) 6 WAY

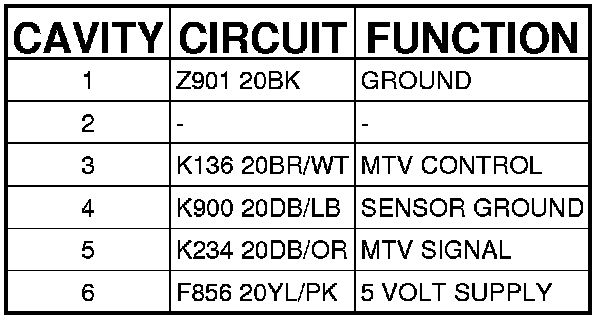

SOLENOID-MANIFOLD TUNING VALVE (3.5L) - (ENGINE) 6 WAY
