Home >> Ford >> 1990 >> F 250 4WD Pickup V8-7.3L DSL >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Part 2 of 3

Part 2 of 3

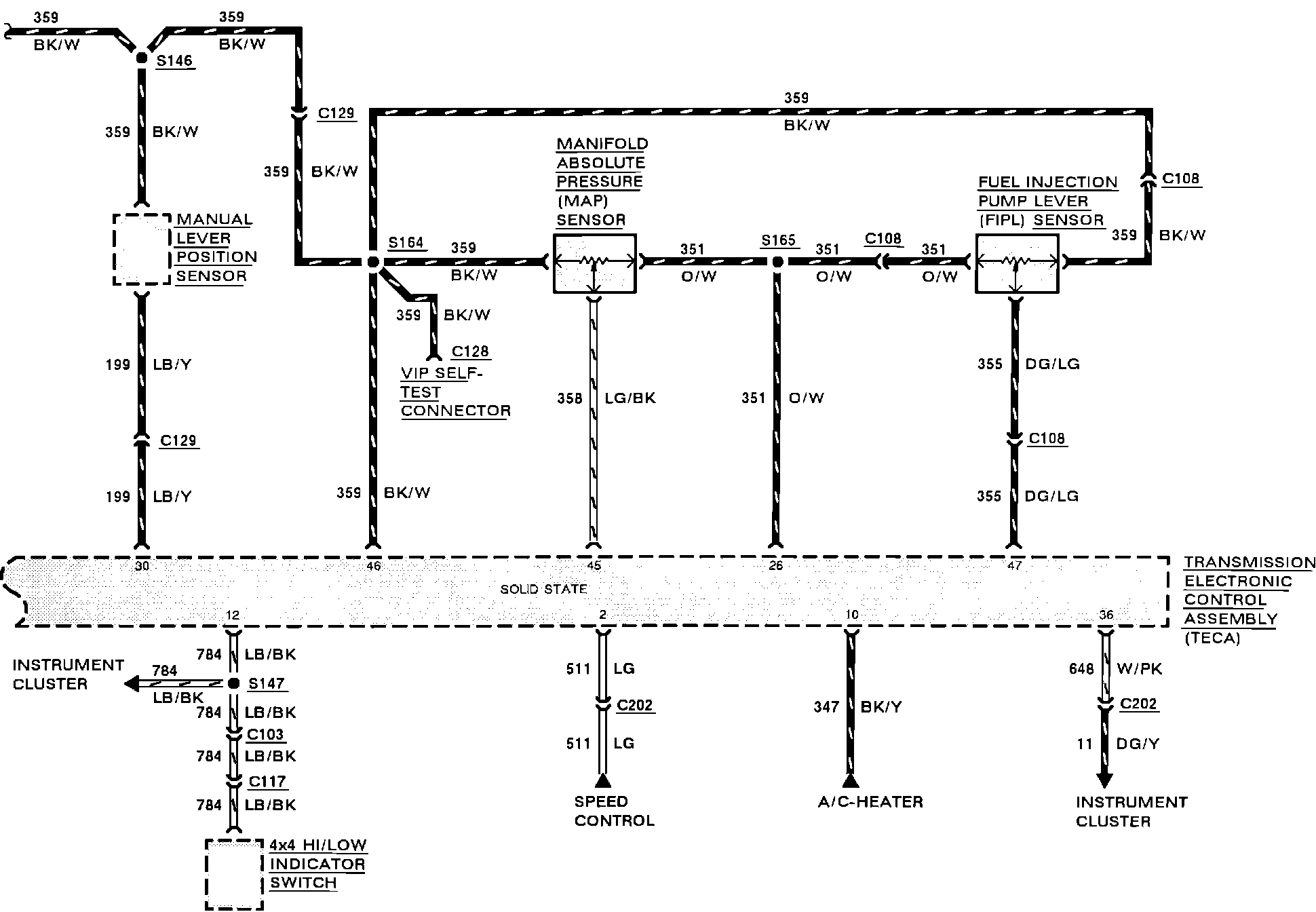

Transmission Control. Diesel Engines:
