Fuel Delivery and Air Induction
Fuel Delivery and Air Induction

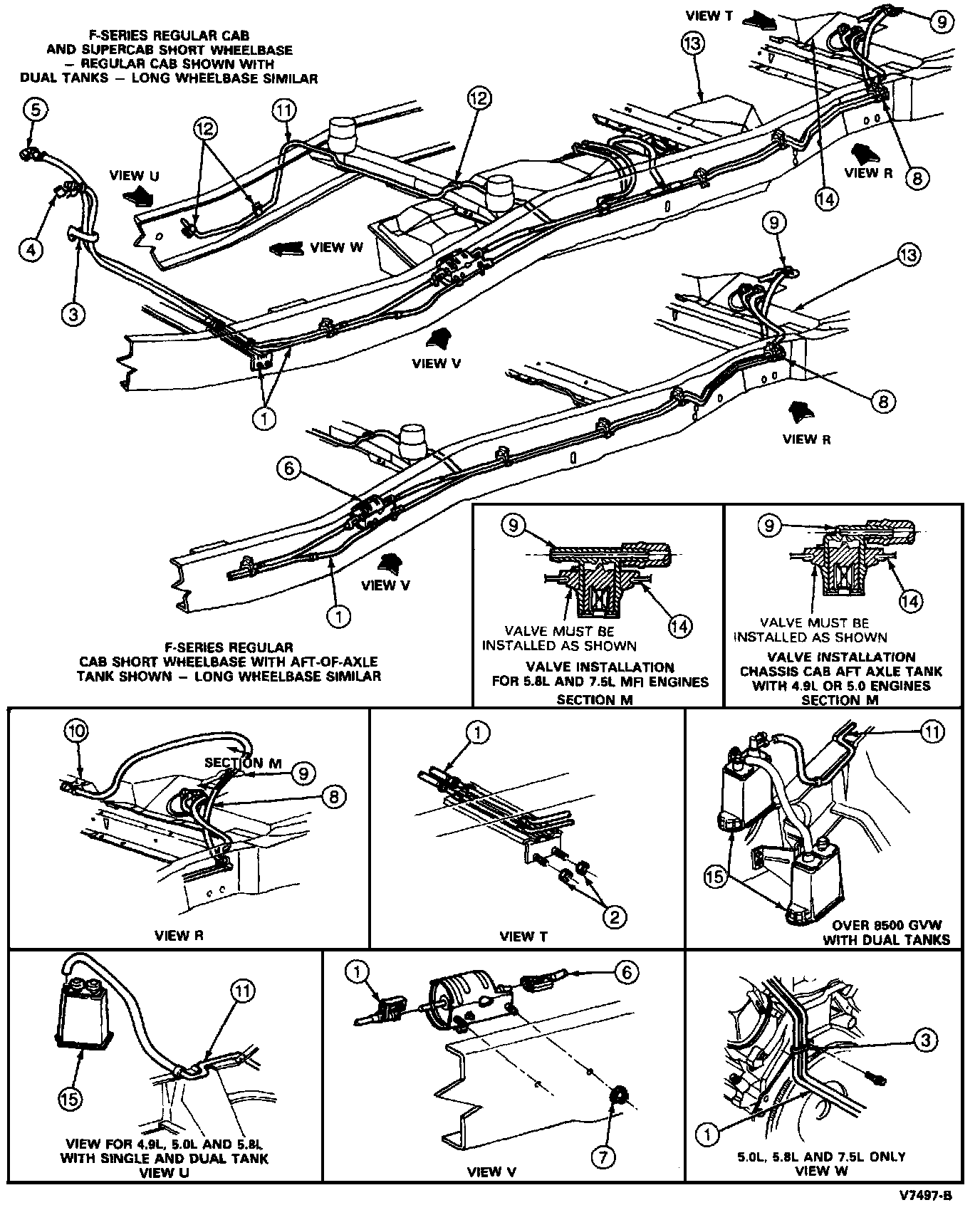

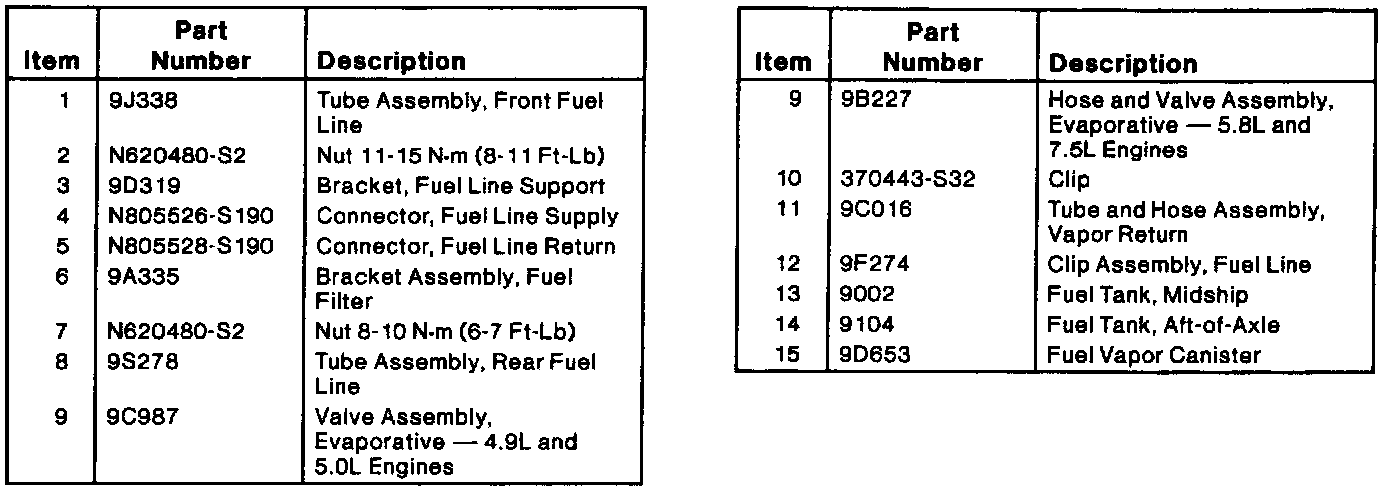

Fuel Vapor Hose Routing:
Fuel Vapor Hose Routing:
