Fuse 26

Fuse 26 - protects the following circuits:
^ Transmission Control Switch
^ Daytime Running Lamps Module
^ Backup Lamp Switch
^ Digital Transmission Range Sensor

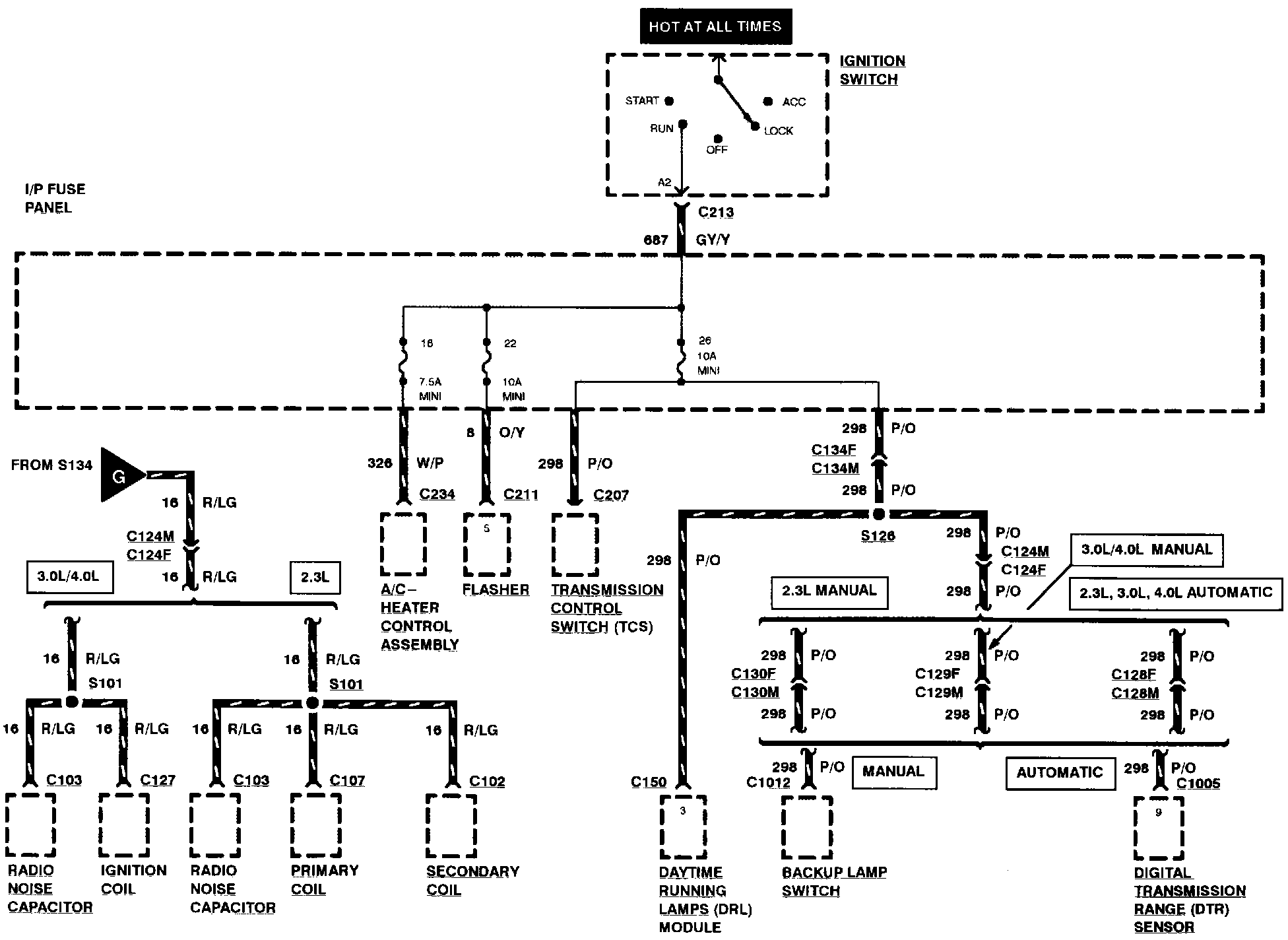

Power Distribution:




Power Distribution:
