A: Shift Solenoids

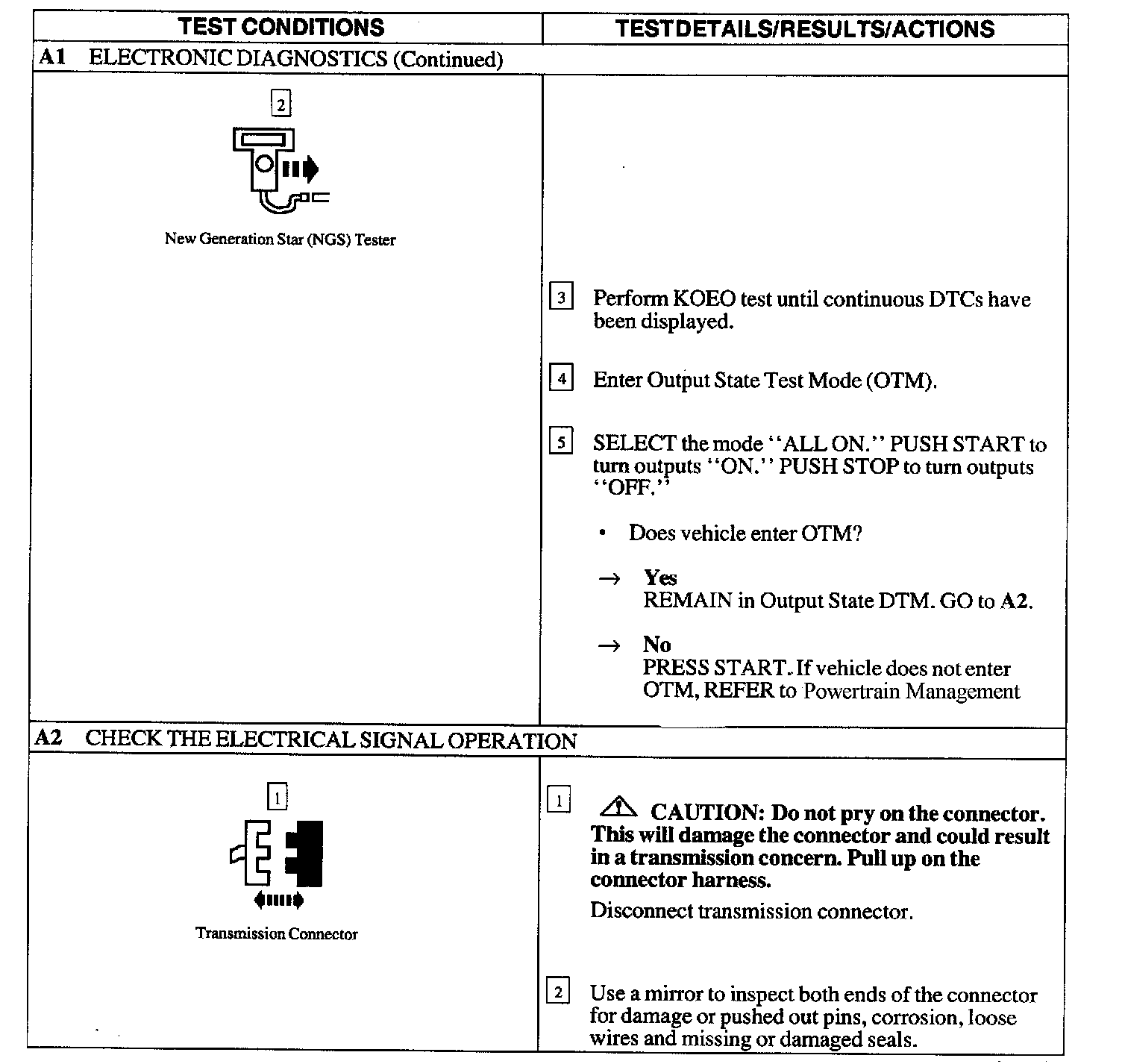

A1:
A! - A2:
A2 - A3:

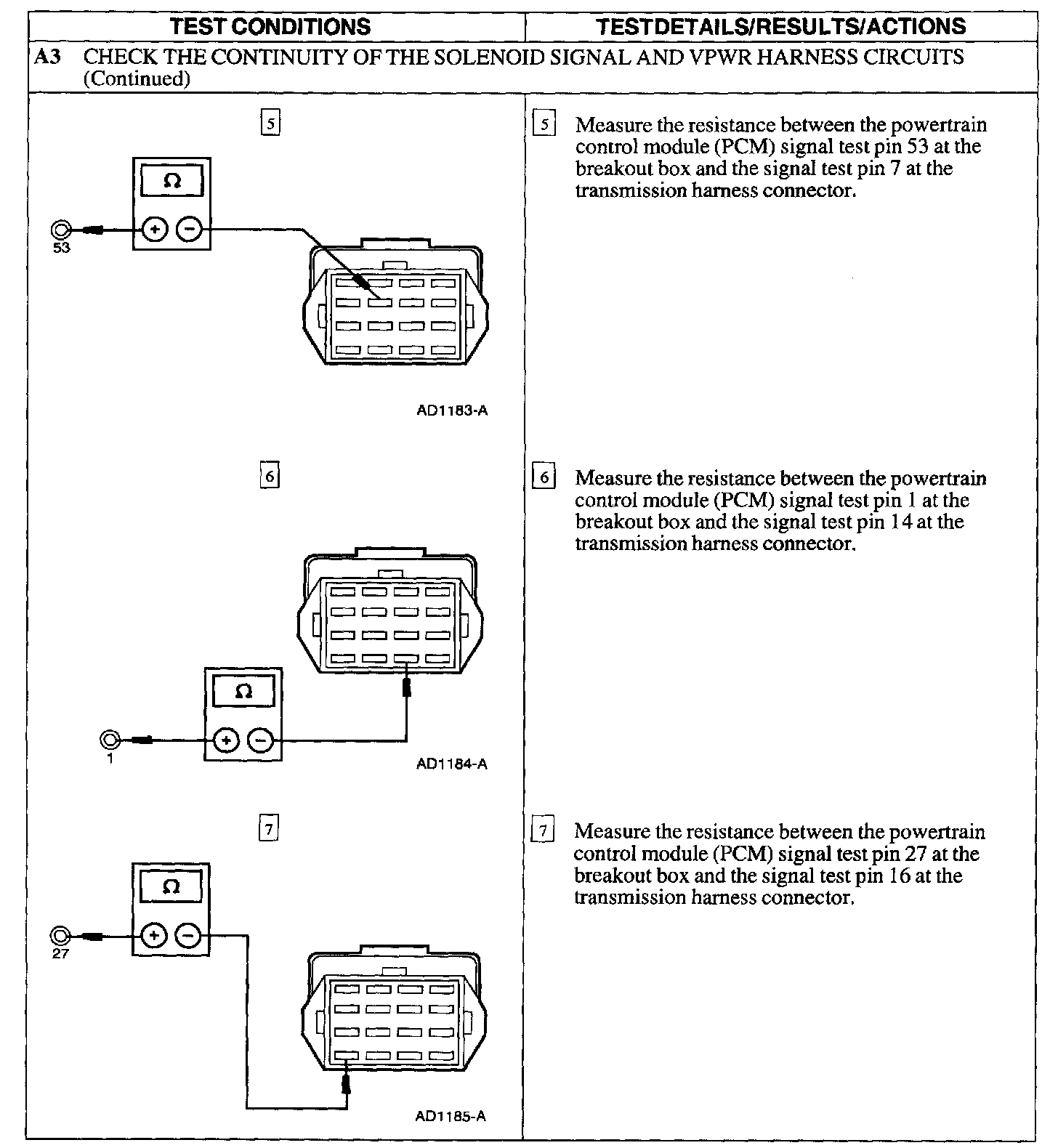

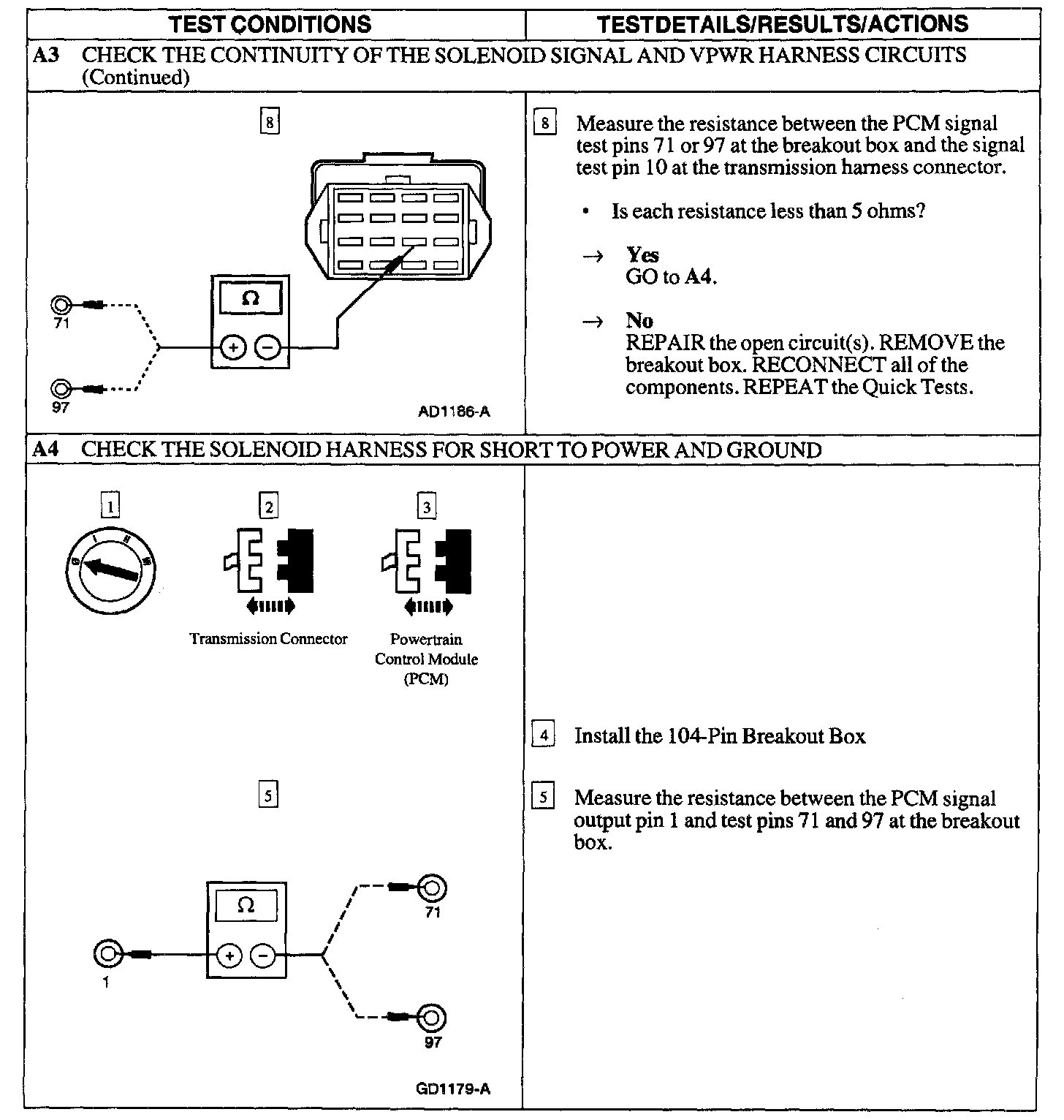

A3:
A3 - A4:

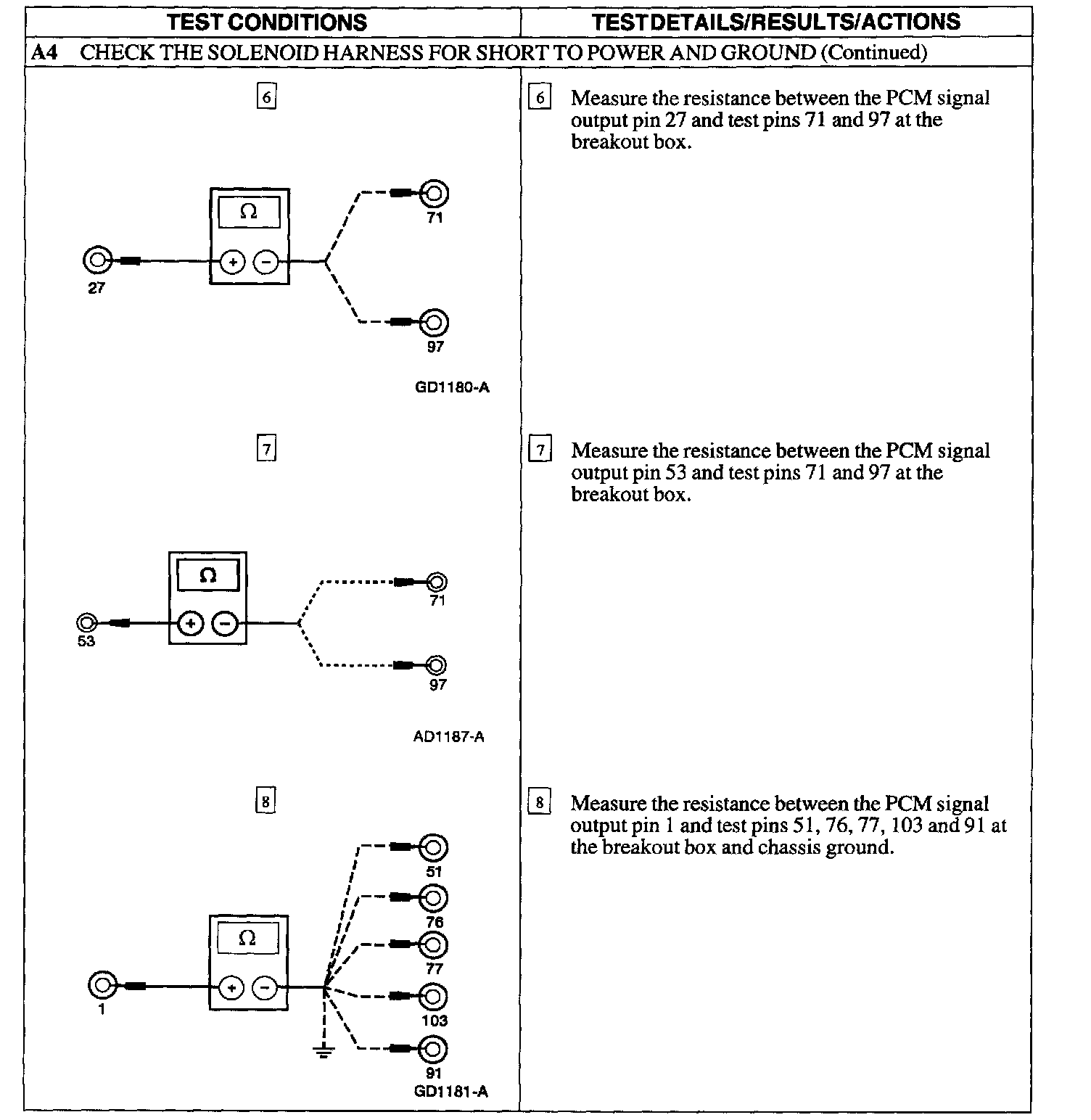

A4:

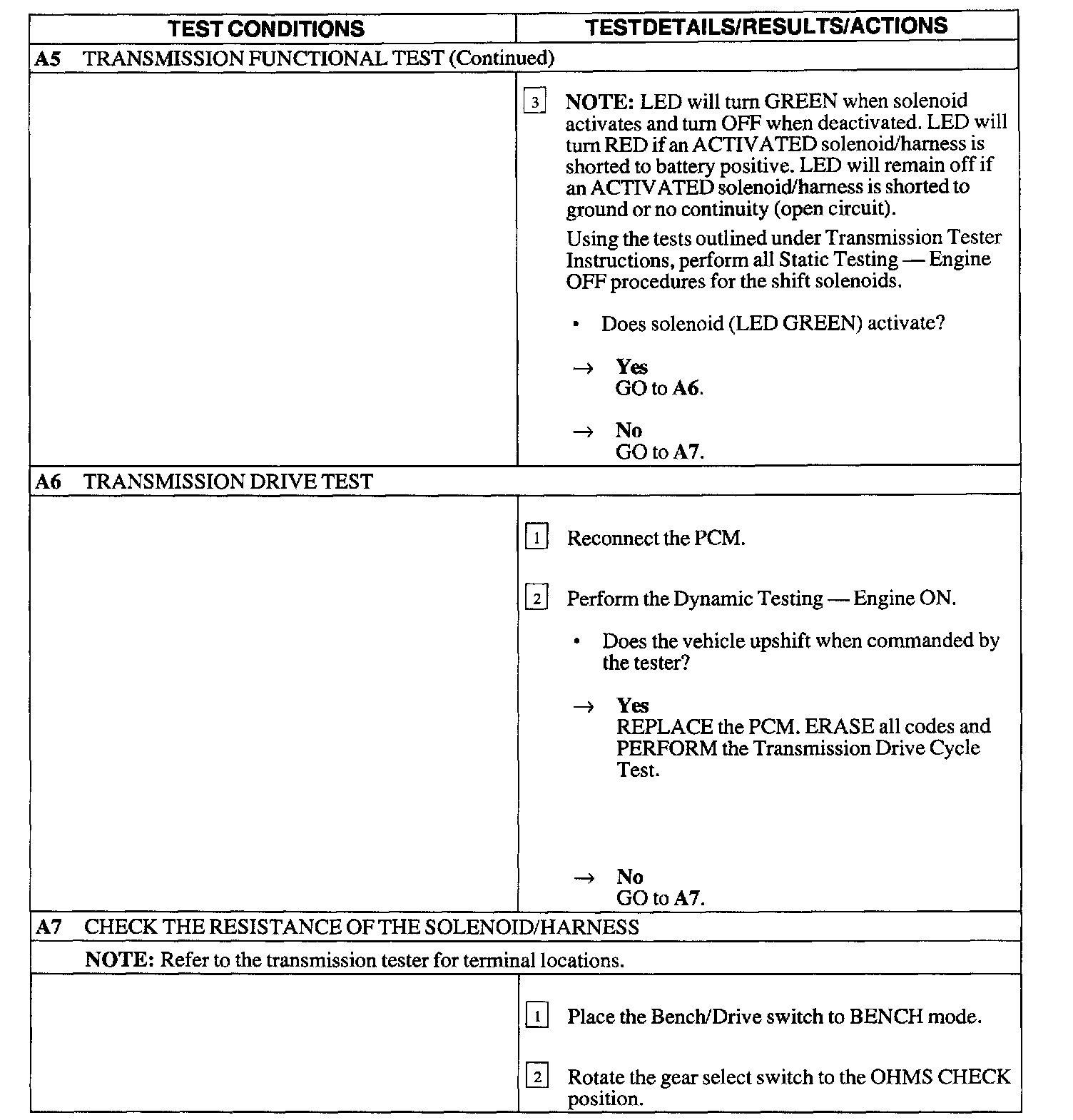

A4 - A5:
A5 - A7:

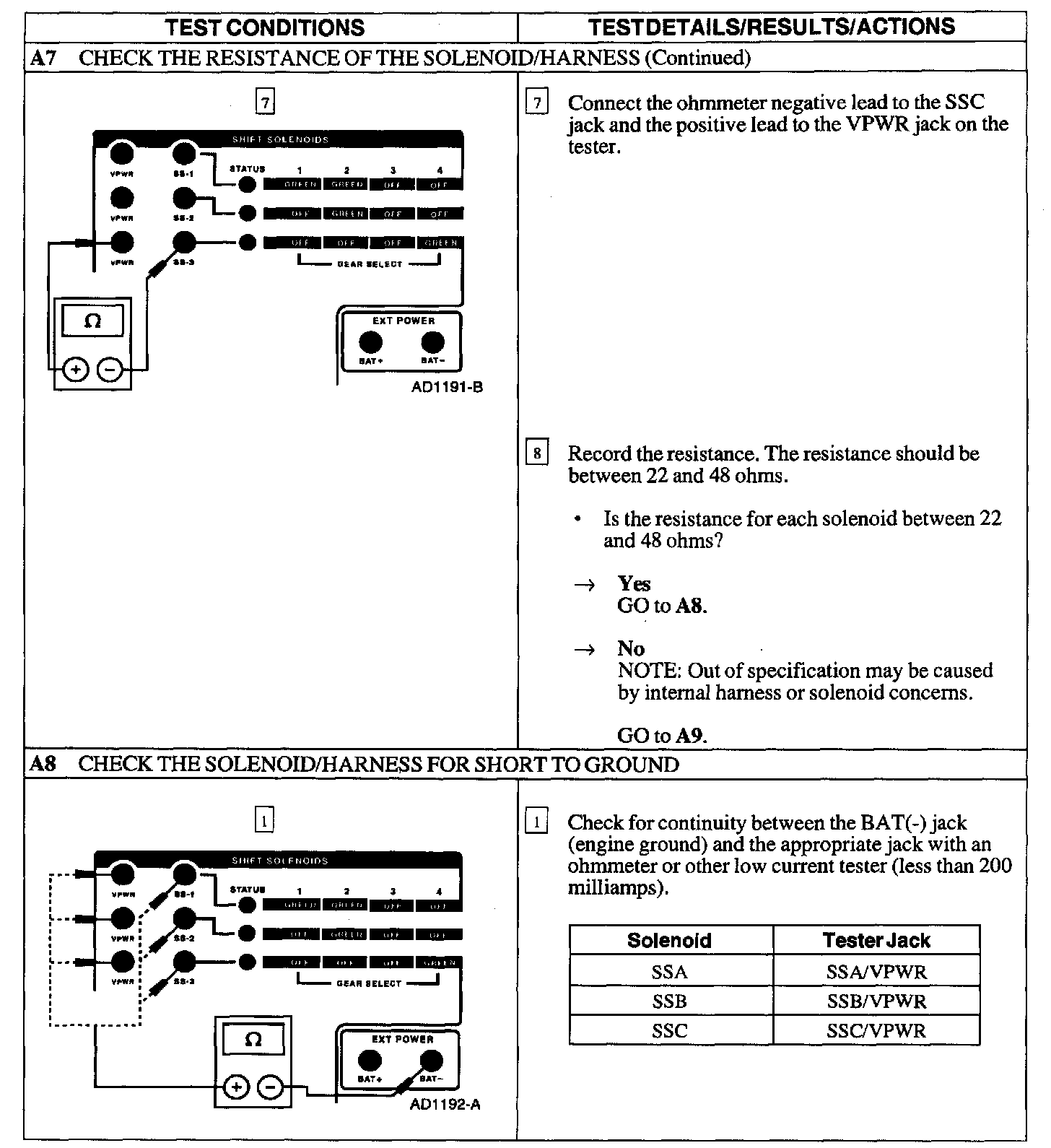

A7 - A8:

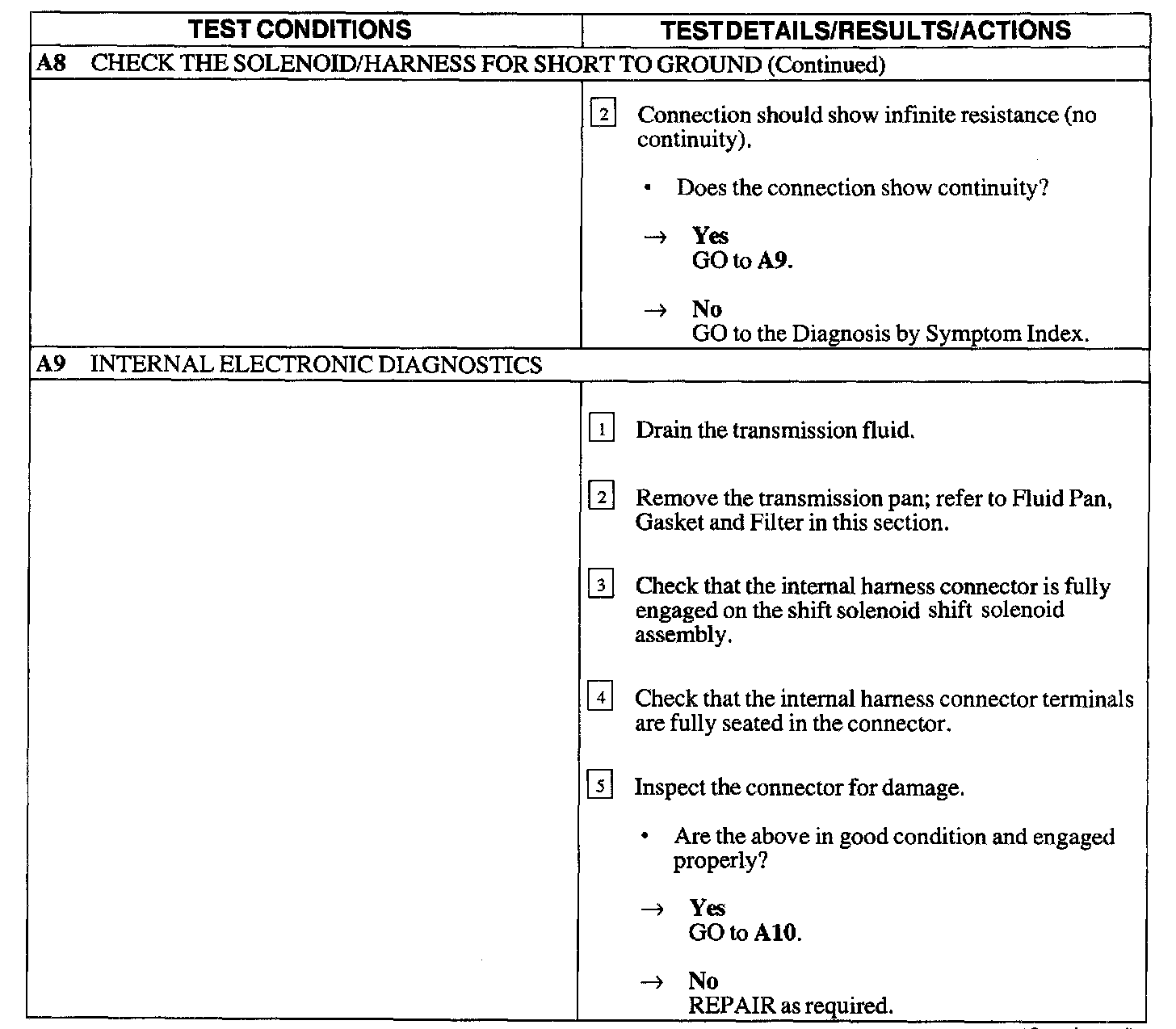

A8 - A10:

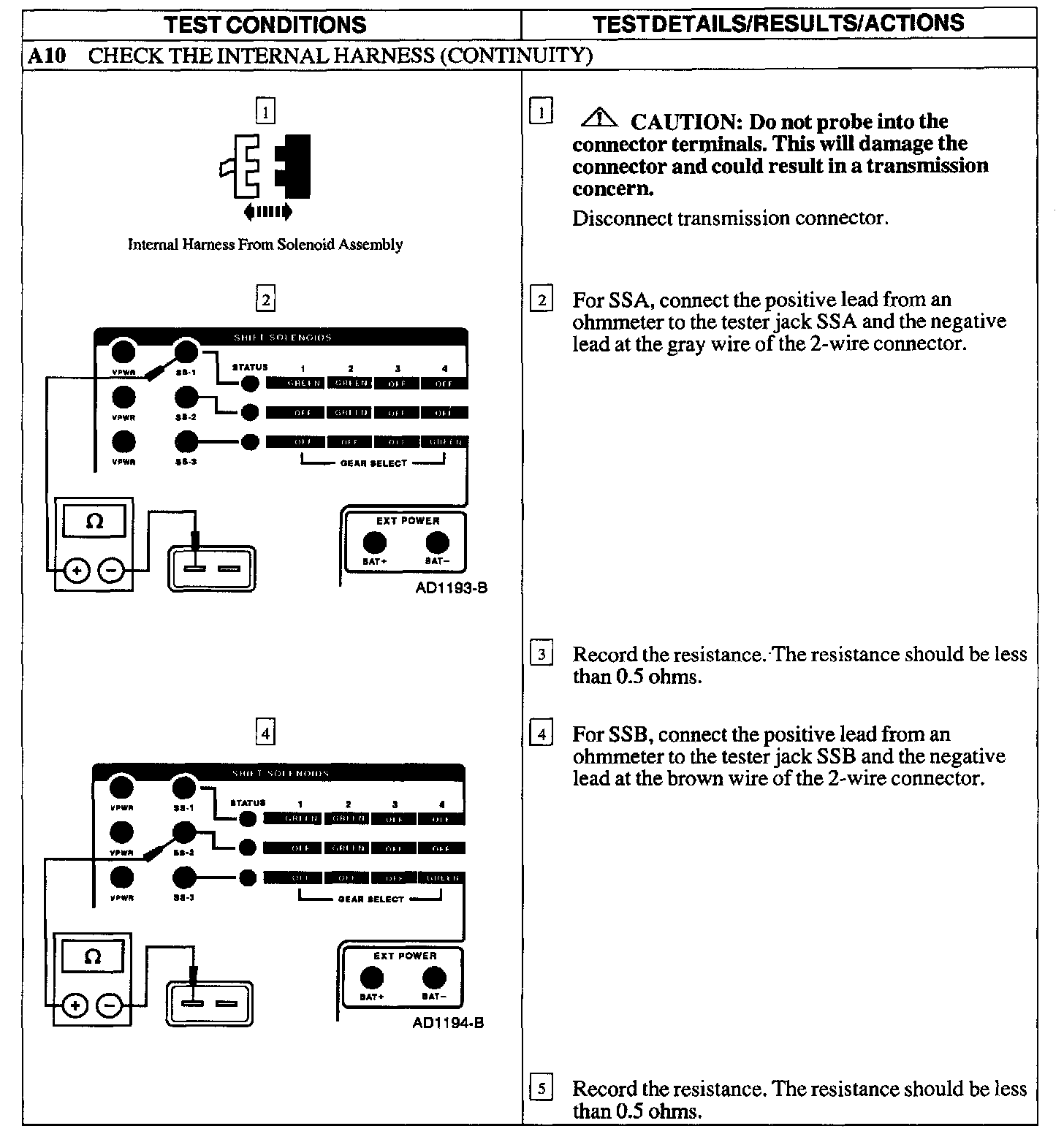

A10:

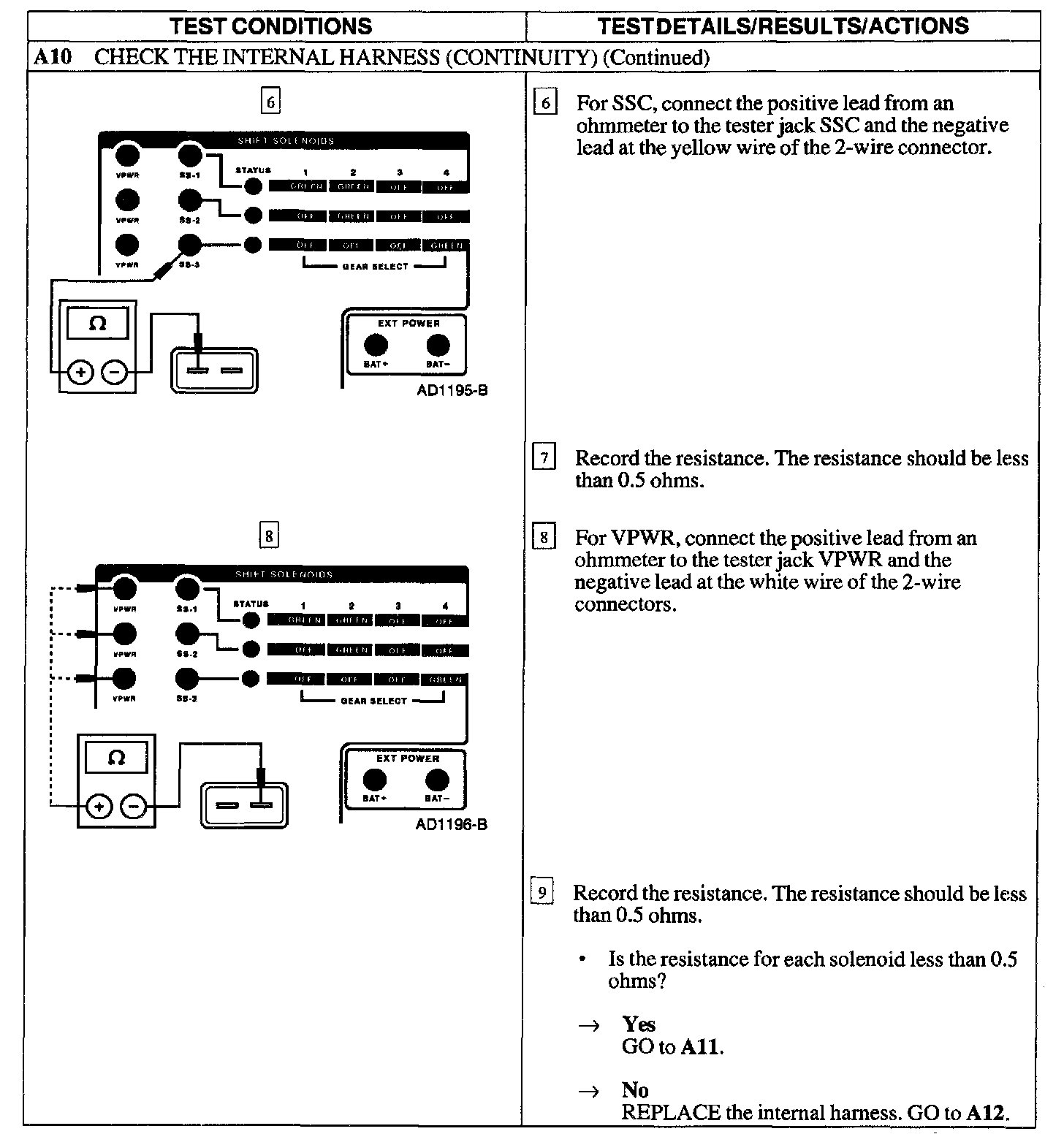

A10:

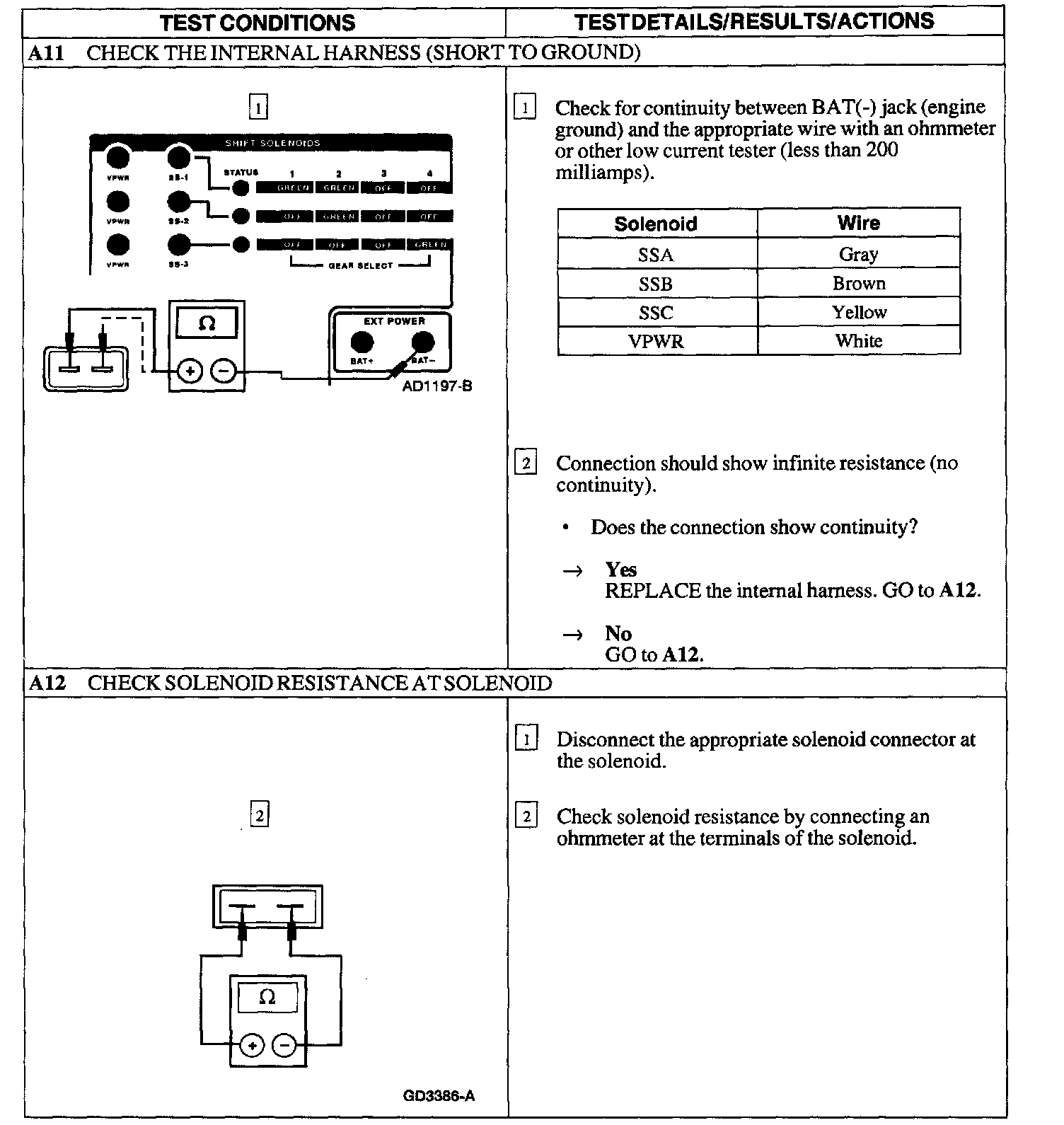

A11 - A12:

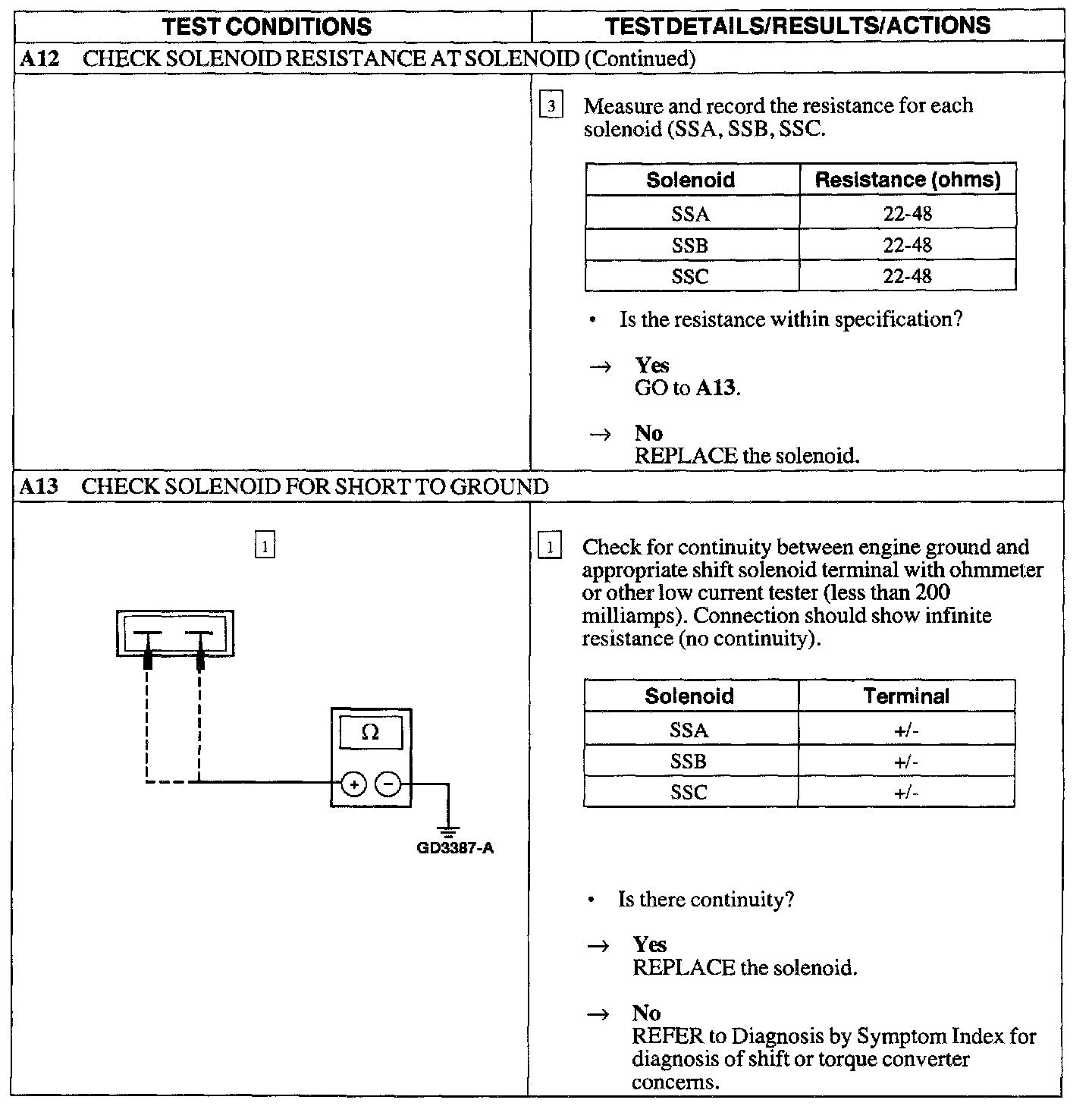

A12 - A13:
NOTE: Refer to the Internal Harness Connector illustration.
NOTE: Refer to the Transmission Vehicle Harness Connector illustration.
