Home >> Ford >> 2007 >> Ranger 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> C175T-C278 >> C202B

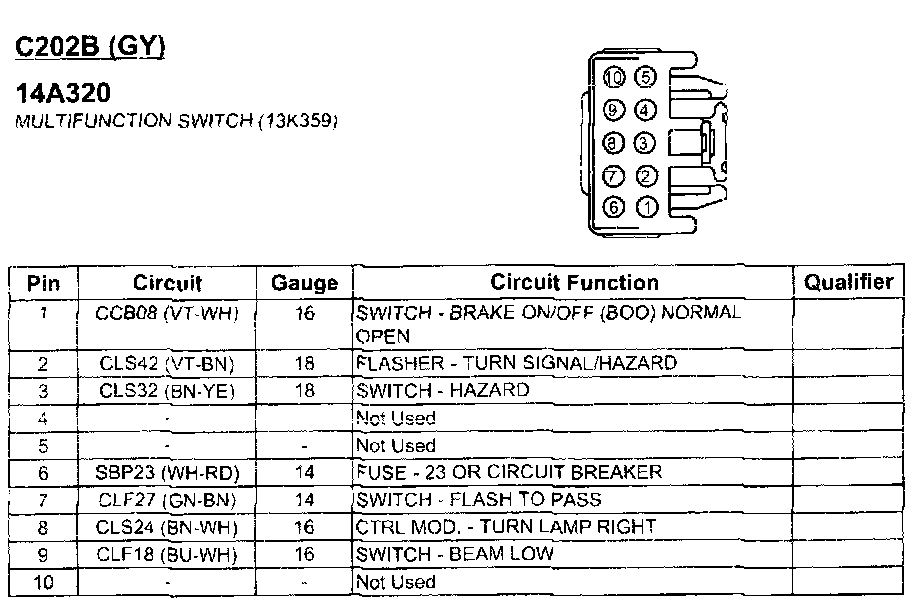

C202B

C202B:
