Shift Interlock Solenoid: Service and Repair

Brake Shift Interlock Actuator









Removal and Installation

1. Remove the selector lever mechanism. For additional information, refer to Selector Lever Mechanism Selector Lever Mechanism.

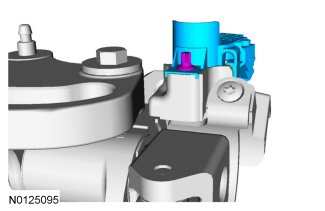

2. Remove the Brake Shift Interlock Actuator (BSIA) screw.





3. Remove the BSIA.

1. Gently pry out the clip.

2. While simultaneously removing the BSIA from the selector lever mechanism housing.





4. Remove the park position switch.

1. Using a suitable tool, press the spring loaded pin.

2. While rotating the park position switch clockwise and removing it from the selector lever mechanism.





Installation

1. Install the park position switch.

1. Place the large plunger on the park position switch in the locating hole and position the switch as shown.

2. Rotate the park position switch counterclockwise making sure the tab locks under the housing lip.





2. Verify small plunger is fully extended.





3. Install the BSIA.

1. Insert the BSIA into the selector lever mechanism housing.

2. Gently push the snap lock clip in place.





4. Install the BSIA screw.
- Tighten to 2 Nm (18 lb-in).





5. Install the selector lever mechanism. For additional information, refer to Selector Lever Mechanism Selector Lever Mechanism.
