Braking Action Uneven - Pulls to One Side (Non-Hybrid)

Braking Action Uneven - Pulls to One Side (Non-Hybrid)

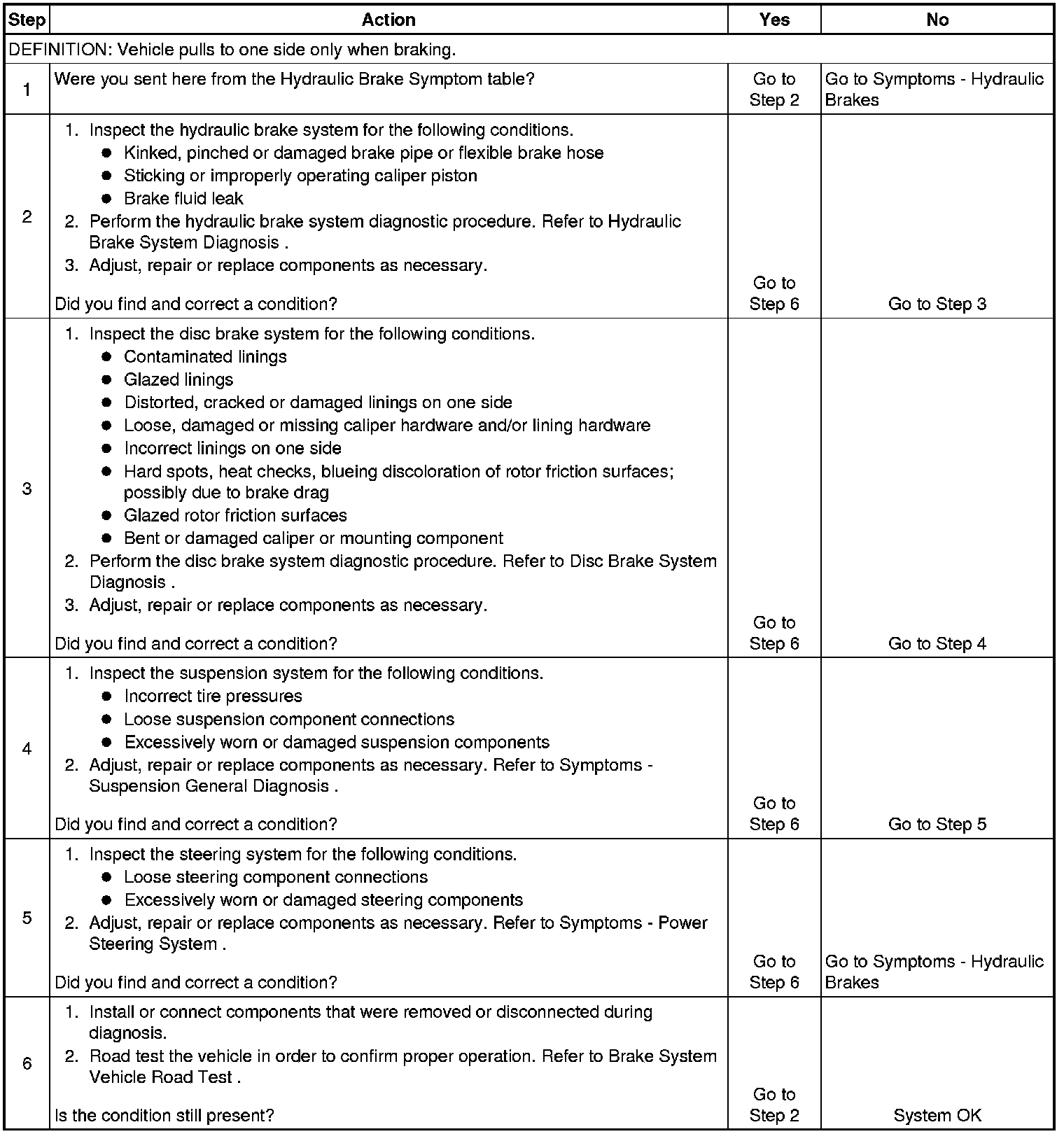

Test Description

The numbers below refer to the step numbers on the diagnostic table.
4. Suspension components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
5. Steering components that are not operating properly may cause a disturbance to the vehicle during application of the brake system.
