Front Skid Plate

FRONT SKID PLATE

REMOVAL

1. Position a support under skid plate.

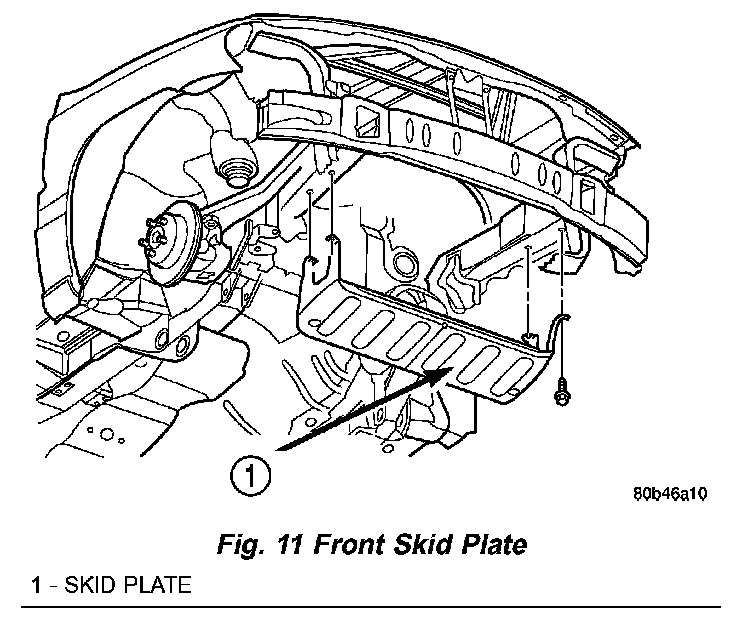

Fig. 11:

2. Remove bolts attaching skid plate to frame (Fig. 11).
3. Separate skid plate from frame.

INSTALLATION

1. Position skid plate on a support.
2. Raise it into position
3. Install bolts attaching skid plate to frame. Tighten bolts to 54 N.m (40 ft. lbs.) torque.
