Rear Wiper Motor

REMOVAL

1. Detach the wiper cap (A), then remove the rear wiper arm after removing a nut (B).

Tightening torque Nut(B) :
4 - 7 Nm (0.4 - 0.7 kgf.m, 2.9 - 5.0 lbf.ft)




2. Remove the rear wiper cap & pad (B) after removing a nut (A).

Tightening torque Nut (A) :
3 - 6 Nm (0.3 - 0.6 kgf.m, 2.1 - 4.3 lbf.ft)




3. Open the tailgate then remove the tailgate trim.

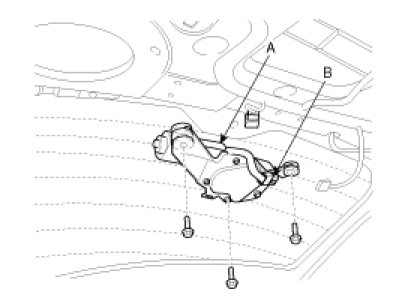

4. Disconnect the rear wiper motor connector (B) then remove the rear wiper motor (A) after removing 3 bolts.

Tightening torque Nut :
7 - 10 Nm (0.7 - 1.0 kgf.m, 5.0 - 7.2 lbf.ft)





INSTALLATION

1. Install the rear wiper motor.
2. Install the rear wiper cap & pad.
