Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2010
>>
GX 460 V8-4.6L (1UR-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Locations
>>
Exterior Lighting System
Exterior Lighting System

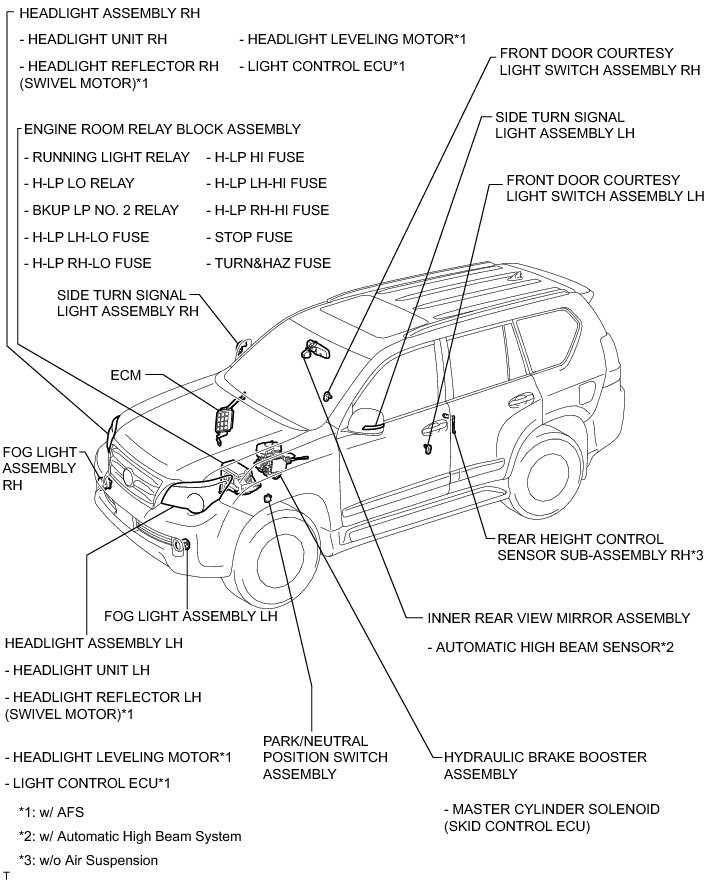

LIGHTING (EXT): LIGHTING SYSTEM: PARTS LOCATION
