CYLINDER HEAD DISASSEMBLY (II) [WLT-1, WLT-2, WL-3]
id011097500500

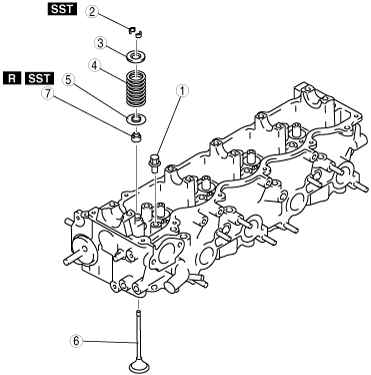

1. Disassemble in the order shown in the figure.
bwl1ge00000027
|
|
1
|
Pivot
|
|
2
|
Valve keeper
|
|
3
|
Upper valve spring seat
|
|
4
|
Valve spring
|
|
5
|
Lower valve spring seat
|
|
6
|
Valve
|
|
7
|
Valve seal
(See Valve Seal Disassembly Note.)
|
Valve Keeper Disassembly Note
1. Remove the valve keeper using the SST.
bwl1ge00000028
|
Valve Seal Disassembly Note
1. Remove the valve seal using the SST.
