JACKING POSITIONS, VEHICLE LIFT (2 SUPPORTS) AND SAFETY STAND (RIGID RACK) POSITIONS
id000000001100

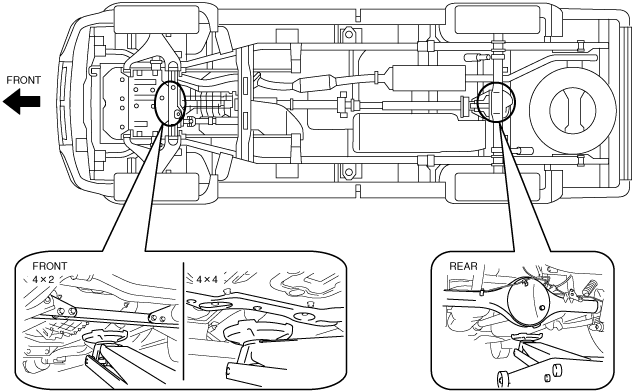

Jacking Positions
-
Warning
-
• Lifting a vehicle that is not stabilized is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of the support at the end of the arm of the lift.
• Use safety stands to support the vehicle after it has been lifted.
Front
• Near the center of the crossmember.
Rear
• At the center of the rear differential.

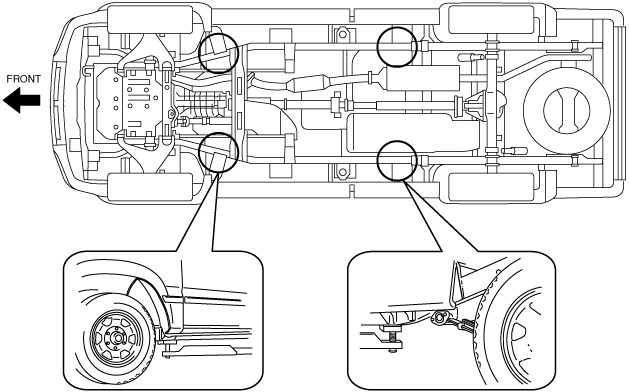

Vehicle Lift Positions
-
Warning
-
• Unstably lifting a vehicle is dangerous. The vehicle can slip off the lift and cause serious injury and/or vehicle damage. Make sure that the vehicle is on the lift horizontally by adjusting the height of support at the end of the arm of the lift.

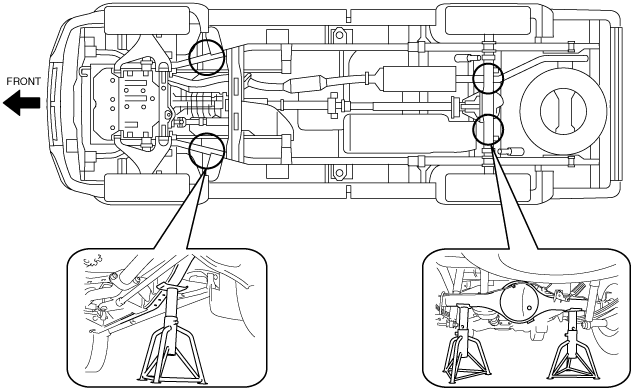

Safety Stand Positions
