HOW TO USE THIS MANUAL
id000000600900
This manual contains frame and cabin dimensions. An explanation of how to read the dimensional drawing is given below.

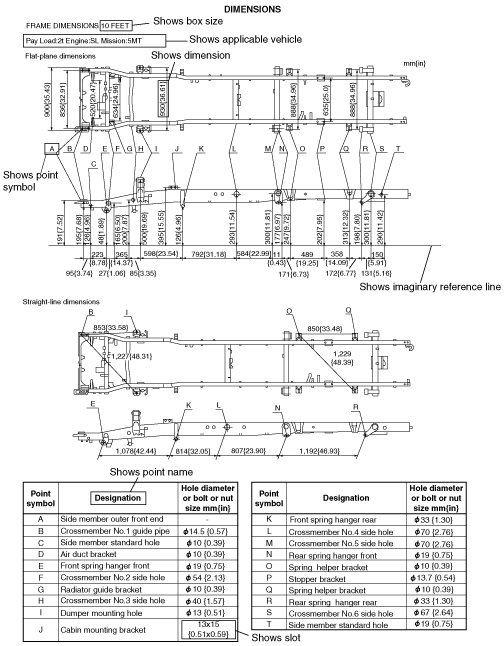

How To Read Frame Dimensions
• Frame dimensions are the dimensions measured by projecting certain reference points onto a plane surface.
• When there are no specific indications, the sta ndard points and dimensions are symmetrical in regard to the center of the vehicle.
• The hypothetical lines may differ according to the vehicle model.
• The outline drawing shows the figure that projected vehicle from the upper side.
Example

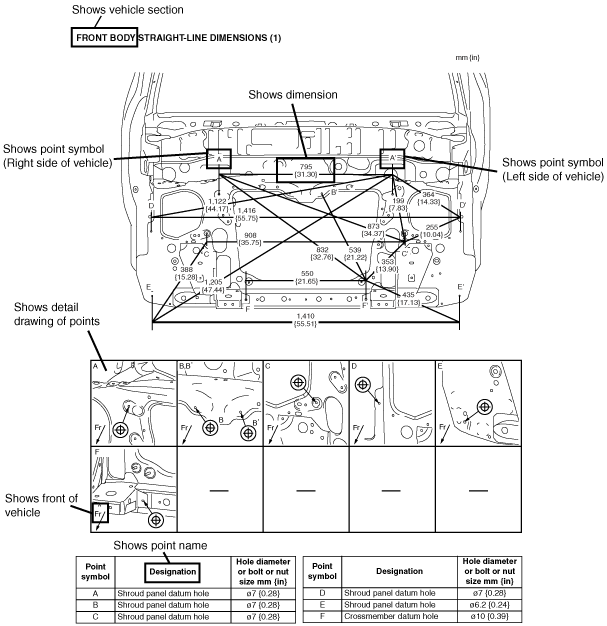

How To Rear Cabin Dimensions
• Cabin dimensions are the actual dimensions between two standard points.
• When there are no specific indications, the standard points and dimensions are symmetrical in regard to the center of the vehicle.
Example

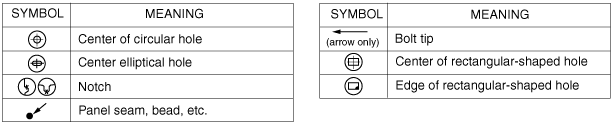

Symbols of Body Dimensions
• The following 8 symbols are used to indicate the standard points.
