ON-BOARD DIAGNOSTIC OUTLINE [WL-C, WE-C]

id0102b9100100

Features

Improved serviceability

•  DTCs adopted •  KOEO/KOER self-test function adopted •  PID/DATA monitor function adopted •  Active command mode function adopted

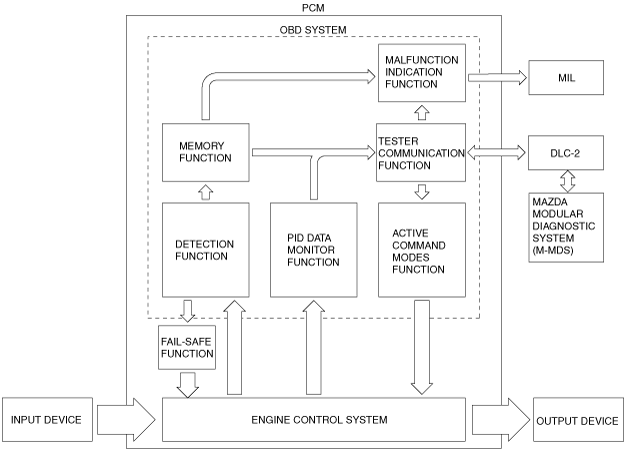

Block Diagram

am2zzn00000782
