FOREWORD [WL-C, WE-C]

id0102b9800300

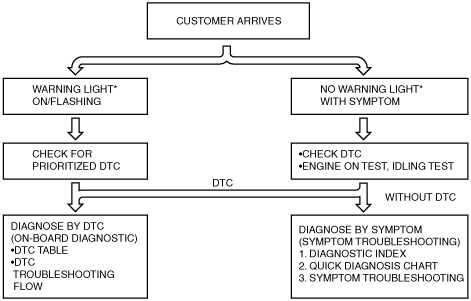

• When the customer reports a vehicle malfunction, check the malfunction indicator light (MIL) indication and diagnostic trouble code (DTC), then diagnose the malfunction according to following flowchart.

― If the DTC exists, diagnose the applicable DTC inspection. (See DTC TABLE [WL-C, WE-C].)

― If the DTC does not exist and the MIL does not illuminate, diagnose the applicable symptom troubleshooting.

absggw00000241

*: Malfunction Indicator Light (MIL), Generator Warning Light, Security Light
