DTC P0116 [WL-C, WE-C]
id0102b9803900
Australian, European (L.H.D. U.K.) specs.
|
DTC P0116 |
Engine coolant temperature (ECT) sensor range/performance malfunction |
|---|---|
|
DETECTION CONDITION
|
• Minimum engine coolant temperature rise is not achieved within the specified time limit from when the engine was started.
|
|
POSSIBLE CAUSE
|
• Connector or terminal malfunction
• ECT sensor malfunction
• Thermostat malfunction
• PCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record the FREEZE FRAME DATA on the repair order, then go to the next step.
|
||
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related service information availability.
• Is any related service information available?
|
Yes
|
Perform repair or diagnosis according to the available service information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
||
|
3
|
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Connect the M-MDS to the DLC-2.
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine and warm it up completely.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Intermittent concern exists.
Perform the “INTERMITTENT CONCERN TROUBLESHOOTING”.
|
||
|
4
|

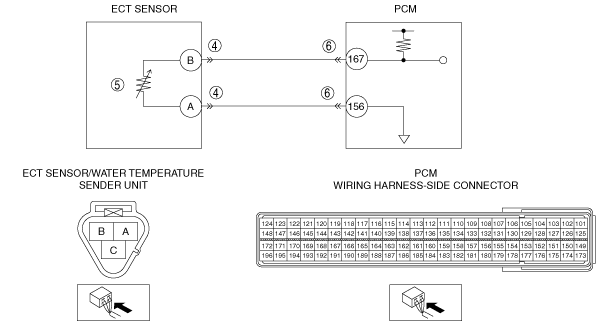

INSPECT ECT SENSOR CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the ECT sensor connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 8.
|
|
No
|
Go to the next step.
|
||
|
5
|
INSPECT ECT SENSOR
• Inspect the ECT sensor.
• Is there any malfunction?
|
Yes
|
Replace the ECT sensor, then go to Step 8.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out pins, corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 8.
|
|
No
|
Go to the next step.
|
||
|
7
|
INSPECT THE THERMOSTAT
• Inspect the thermostat.
• Is there any malfunction?
|
Yes
|
Repair or replace the thermostat, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
8
|
VERIFY TROUBLESHOOTING OF DTC P0116 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine and warm it up completely.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
9
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the Repair Verification Drive Mode.
(See OBD DRIVE MODE [WL-C, WE-C].)
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [WL-C, WE-C].)
|
|
No
|
DTC troubleshooting completed.
|
||
