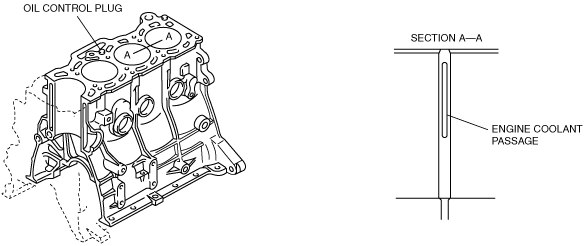

•  The cylinder block has a deep skirt design with many ribs on the outside walls for increased rigidity and weight reduction.

•  An oil control plug is used to control oil flow to the valve mechanism. It is installed in the cylinder block and engages the cylinder head for good sealing performance.

•  Engine coolant passages are provided between bores in the cylinder block.

absggn00000007
