DRIVE BELT ADJUSTMENT [F2]

id011094804500

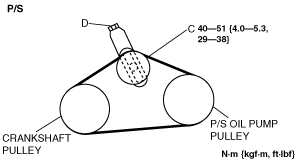

1. Loosen mounting bolts A and B, and locknut C.

2. Adjust the belt deflection or tension by turning the generator or adjusting bolt D. (See DRIVE BELT INSPECTION [F2].)
