OIL COOLER, OIL FILTER BODY CONSTRUCTION [WLT-1, WLT-2]

id011196118400

•  A water-cooled, 5-layered type oil cooler has been adopted to reduce engine oil degradation.

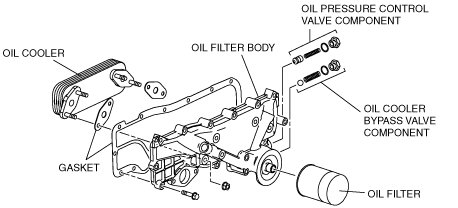

•  The oil cooler, oil cooler bypass valve, and oil pressure control valve are built into the oil filter body.
abs0zn00000021

Oil filter body specification

Item

Specification (kPa {kgf/cm2, psi})

[oil temperature: 120 °C {248 °F}]
Oil cooler bypass valve opening pressure
164—200
Oil pressure control valve opening pressure
400—480
