WATER PUMP REMOVAL/INSTALLATION [G6]

id011295800700

1.  Remove the cooling fan. (See COOLING FAN REMOVAL/INSTALLATION [G6].)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [G6]

3.  Remove the radiator cowling. (See RADIATOR REMOVAL/INSTALLATION [G6].)

4.  Remove in the reverse order of removal.

5.  Install in the reverse order of removal.

6.  Fill the radiator with the specified amount and type of engine coolant. (See ENGINE COOLANT REPLACEMENT [G6].)

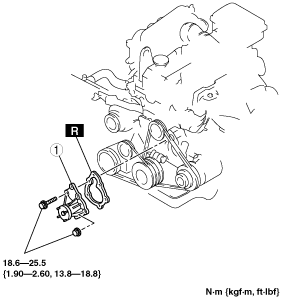

arnffw00000652

1	Water pump
