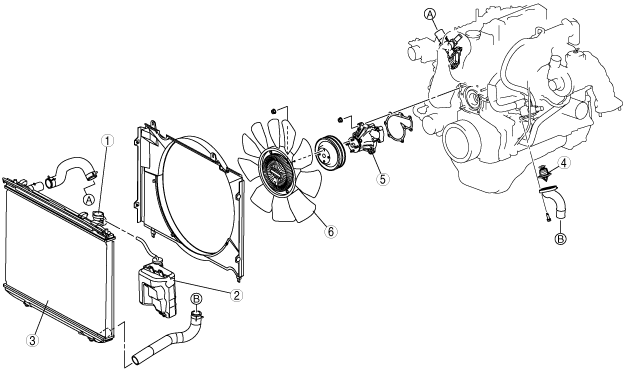

COOLING SYSTEM LOCATION INDEX [WLT-1, WLT-2]

id011296800100

absggw00001612

1	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [WLT-1, WLT-2].)
2	Coolant reserve tank (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [WLT-1, WLT-2].)
3	Radiator (See RADIATOR REMOVAL/INSTALLATION [WLT-1, WLT-2].)
4	Thermostat (See THERMOSTAT REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See THERMOSTAT INSPECTION [WLT-1, WLT-2].)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2].)
6	Cooling fan (See COOLING FAN REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See COOLING FAN INSPECTION [WLT-1, WLT-2].)
