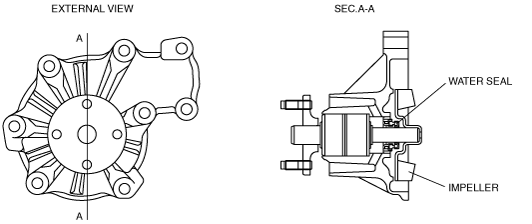

•  The aluminum alloy water pump with the impeller built into the cylinder block has been adopted for size reduction.

•  A highly reliable integrated water seal has been adopted.

•  The water pump is not serviceable and must be replaced as a single unit if it has a malfunction.

dcg112ztb003

•  The water pump is driven by the drive belt.
