FUEL-INLET FILTER REMOVAL/INSTALLATION [WLT-1, WLT-2]

id011496805900

1.  Disconnect the negative battery cable.

2.  Disconnect the fuel hose connecting to the fuel-inlet pipe.

3.  Remove in the order indicated in the table.

4.  If there is any malfunction, clean the fuel-inlet filter.

5.  Install in the reverse order of removal.

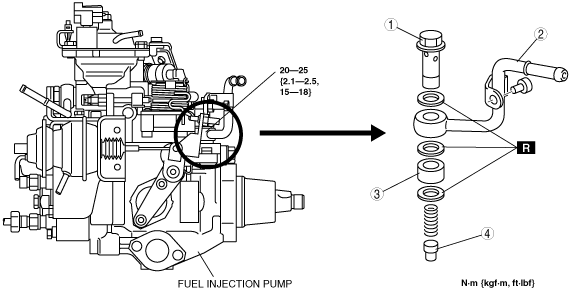

WLT-1

absggw00000304

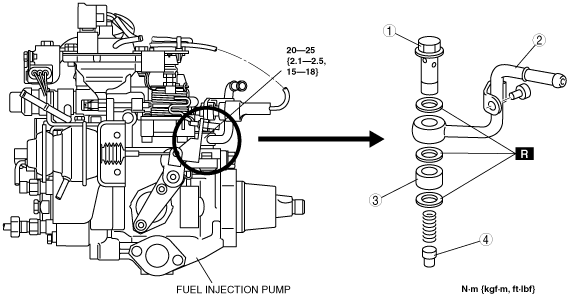

WLT-2

absggw00000305

1	Installation bolt
2	Fuel-inlet pipe
3	Fuel-inlet pipe insulator
4	Fuel-inlet filter (See Fuel-inlet Filter Removal Note.)

Fuel-inlet Filter Removal Note

1.  Remove the spring and the fuel-inlet filter with a steel wire makes the removal of these parts easier.

absggw00000306
