FUEL SYSTEM STRUCTURAL VIEW [WL-C, WE-C]

id0114b6100200

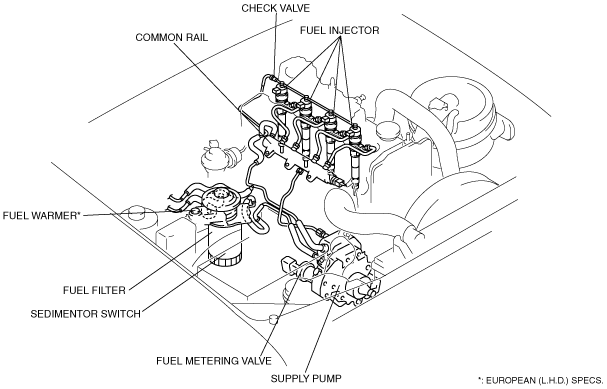

Engine Room Side

absggn00000193

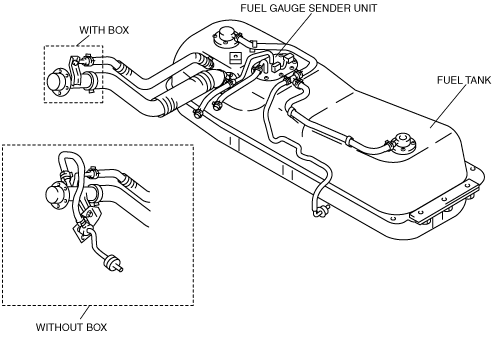

Fuel Tank Side

Double cab 4x2 (Except high clearance model), Freestyle cab 4x2 (Except high clearance model)

absggn00000194

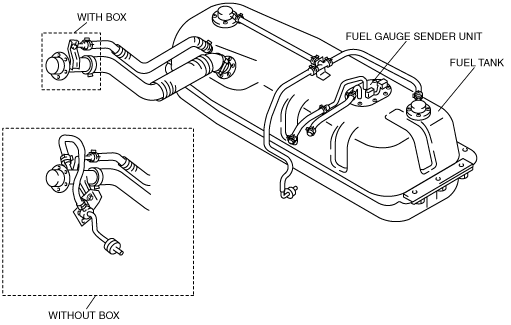

Regular cab, Double cab 4x4, Freestyle cab 4x4, High clearance model

absggn00000195
