FUEL-INLET FILTER REMOVAL/INSTALLATION [WL-C, WE-C]

id0114b6805900

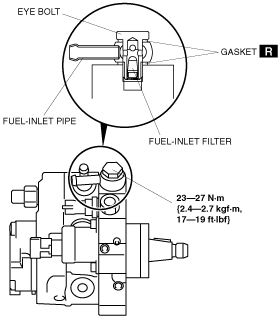

1.  Disconnect the negative battery cable.

2.  Disconnect the fuel hose connecting to the fuel-inlet pipe.

3.  Remove in the eye bolt.

Note

•  The fuel-inlet filter cannot be removed as it is crimped to the eye bolt.

dbg114bwb004

4.  If there is any malfunction, clean the fuel-inlet filter.

5.  Install in the reverse order of removal.
