EXHAUST SYSTEM REMOVAL/INSTALLATION [F2]

id011594800200

Warning

•  When the engine and exhaust system are hot, they can badly burn. Turn off the engine and wait until they are cool before removing the exhaust system.

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

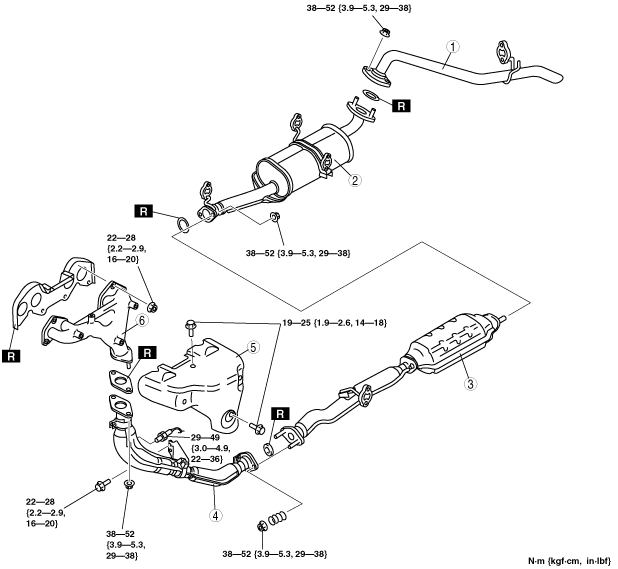

abs0zw00000184

1	Tail pipe
2	Main silencer
3	TWC (See TWC Installation Note)
4	Front pipe
5	Insulator
6	Exhaust manifold

TWC Installation Note

1.  Spray carbon remover (TB6601 or equivalent) on the flared section of the exhaust pipe.

am6zzw00002918

2.  Remove the carbon adhering to the flared section shown in the figure using a nylon brush or sandpaper (No. 400 or equivalent).
