PURGE SOLENOID VALVE INSPECTION [F2]

id011694800900

Simulation Test

1.  Carry out the"Purge Control Inspection". (See ENGINE CONTROL SYSTEM OPERATION INSPECTION [F2].)

•  If not as specified, perform the further inspection for the purge solenoid valve.

Airflow Inspection

Note

•  Perform the following test only when directed.

1.  Disconnect the negative battery cable.

2.  Remove the purge solenoid valve.

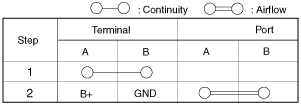

3.  Inspect airflow between the ports under the following conditions.

absggw00000271

arnffw00001309

•  If not as specified, replace the purge solenoid valve.

•  If as specified but the"Simulation Test"is failed, inspect for the following

―  Vacuum hose improper routing, kinks or leakage.

Open Circuit

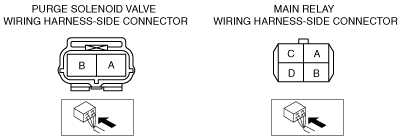

•  GND circuit (purge solenoid valve connector terminal B and PCM connector terminal 2X through common connector)

•  Power circuit (purge solenoid valve connector terminal A and main relay connector terminal D through common connector)

arnffw00001147

absggw00000763

Short Circuit

•  Purge solenoid valve connector terminal B and PCM connector terminal 2X through common connector to GND

4.  Repair or replace faulty areas.

5.  Install the purge solenoid valve.

6.  Reconnect the negative battery cable.
