EMISSION SYSTEM LOCATION INDEX [WL-C, WE-C]

id0116b6803700

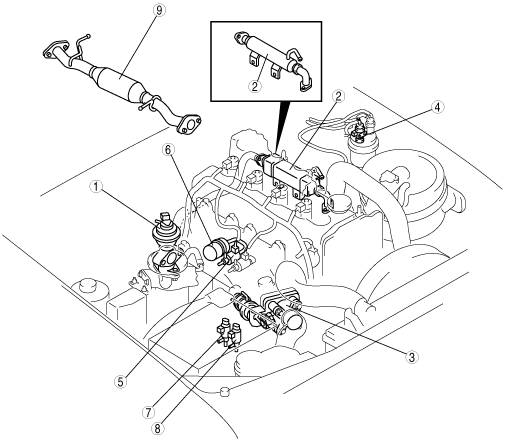

Engine Room Side

arnffw00000460

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [WL-C, WE-C].) (See EGR VALVE INSPECTION [WL-C, WE-C].)
2	EGR cooler (See EGR VALVE REMOVAL/INSTALLATION [WL-C, WE-C].)
3	Intake shutter valve (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].) (See INTAKE SHUTTER VALVE INSPECTION [WL-C, WE-C].)
4	EGR solenoid valve (See EGR SOLENOID VALVE INSPECTION [WL-C, WE-C].)
5	EGR control solenoid valve (See EGR CONTROL SOLENOID VALVE INSPECTION [WL-C, WE-C].)
6	Air filter
7	Intake shutter solenoid valve (half open) (See INTAKE SHUTTER SOLENOID VALVE (HALF OPEN) INSPECTION [WL-C, WE-C].)
8	Intake shutter solenoid valve (full colse) (See INTAKE SHUTTER SOLENOID VALVE (FULL CLOSE) INSPECTION [WL-C, WE-C].)
9	Oxidation catalytic converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

Fuel Tank Side

Double cab 4x2 (Except high clearance model), Freestyle cab 4x2 (Except high clearance model)

absggw00000471

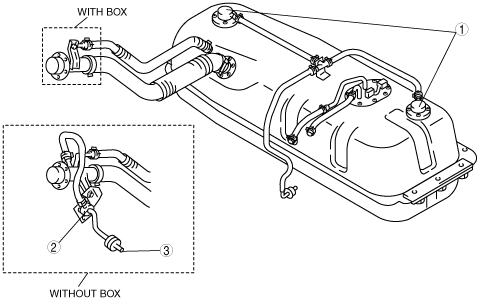

Regular cab, Double cab 4x4, Freestyle cab 4x4, High clearance model

absggw00000472

1	Rollover valve (See ROLLOVER VALVE INSPECTION [WL-C, WE-C].)
2	Check valve (two-way) (See CHECK VALVE (TWO-WAY) INSPECTION [WL-C, WE-C].)
3	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [WL-C, WE-C].)
