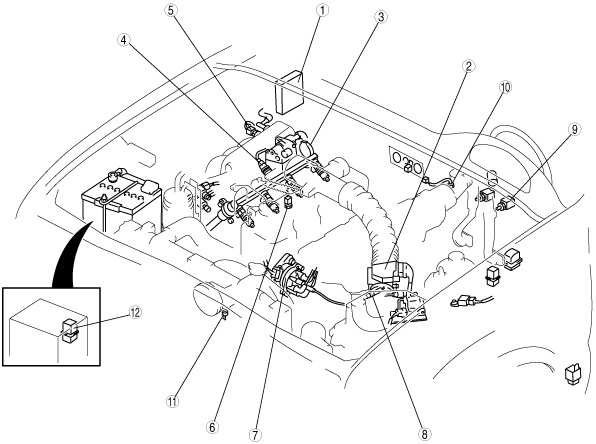

CONTROL SYSTEM LOCATION INDEX [F2]

id014094804100

arnffw00001448

1	PCM (See PCM REMOVAL/INSTALLATION [F2].) (See PCM INSPECTION [F2].)
2	MAF sensor (See MASS AIR FLOW (MAF) SENSOR INSPECTION [F2].)
3	TP sensor (See THROTTLE POSITION (TP) SENSOR INSPECTION [F2].) (See THROTTLE POSITION (TP) SENSOR REMOVAL/INSTALLATION [F2].) (See THROTTLE POSITION (TP) SENSOR ADJUSTMENT [F2].)
4	CTP switch (See CLOSED THROTTLE POSITION (CTP) SWITCH INSPECTION [F2].)
5	IAT sensor (See INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [F2].) (See INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [F2].)
6	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [F2].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [F2].)
7	CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR INSPECTION [F2].)
8	O2S (See OXYGEN SENSOR (O2S) INSPECTION [F2].) (See OXYGEN SENSOR (O2S) REMOVAL/INSTALLATION [F2].)
9	Clutch switch (See CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [F2].)
10	Neutral switch (See NEUTRAL SWITCH INSPECTION [F2].)
11	PSP switch (See POWER STEERING PRESSURE (PSP) SWITCH INSPECTION [F2].)
12	Main relay (See MAIN RELAY REMOVAL/INSTALLATION [F2].) (See MAIN RELAY INSPECTION [F2].)
