CONTROL LEVER POSITION SENSOR CONSTRUCTION/OPERATION [WLT-1, WLT-2]
id014096016500

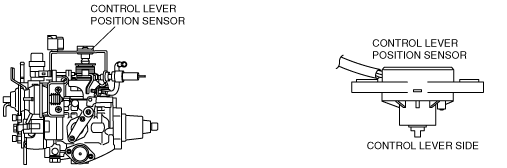

• The control lever position sensor is a potentiometer type that cannot be adjusted.
• The control lever position sensor is installed on the FIP control lever, and the voltage inputted from the sensor to the PCM changes according to the control lever movement.
• The input voltage to the PCM increases when the depressing amount of the accelerator pedal is increased and decreases when the depressing amount of the accelerator pedal is reduced.
