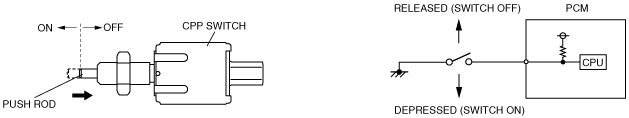

•  The CPP switch is mounted to the top of the clutch pedal. When the clutch pedal is depressed, the contact of the CPP switch closes (ON) and the PCM detects below 1.0V. When the clutch pedal is released, the contact opens (OFF) and the PCM detects B+.
