REAR SHOCK ABSORBER AND LEAF SPRING REMOVAL/INSTALLATION [4x2 (EXCEPT HIGH CLEARANCE MODEL)]

id0214008040a4

Warning

•  Use safety stands for support of the left and right axle casings, and while supporting the differential casing with a jack, raise or lower the jack as necessary.

1.  Support the frame with safety stands and place a jack under the differential casing.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, tighten the bolt (leaf spring front side) completely on the ground.

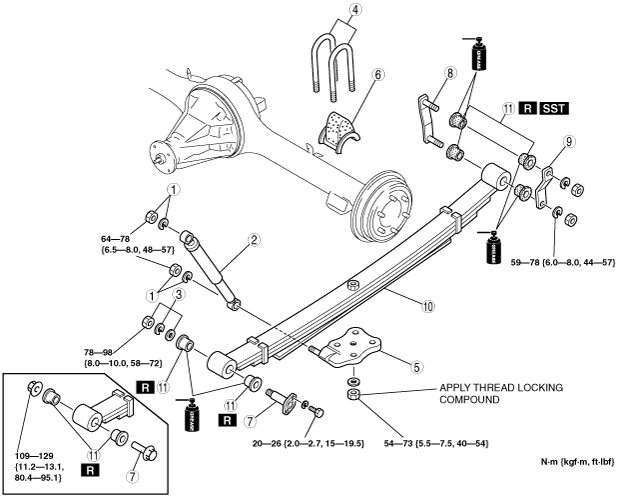

abs0zw00000240

1	Nut and washer
2	Rear shock absorber
3	Nut
4	U-bolt
5	Spring clamp
6	Stopper rubber
7	Bolt
8	Shackle pin
9	Shackle plate
10	Leaf spring component
11	Leaf spring bushing (See Leaf Spring Bushing Removal Note.) (See Leaf Spring Bushing Installation Note.)

Leaf Spring Bushing Removal Note

1.  Secure the leaf spring in a vise and remove the bushing using a chisel.

absggw00001691

Leaf Spring Bushing Installation Note

1.  Press in the bushing using a suitable pipe.

absggw00001692
