RFW CONTROL MODULE INSPECTION [G6, WLT-1, WLT-2]

id0318008025c1

1.  Remove the front scuff plate (LH). (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the front side trim (LH). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3.  Attach the tester lead to the control module connector and inspect the voltage and continuity according to the Terminal Voltage Table (Reference).

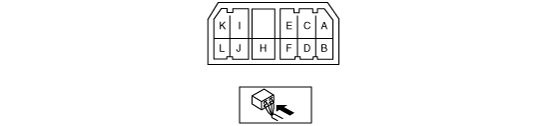

Terminal Voltage Table (Reference)

arnffw00000473

Terminal	Signal name	Connected to	condition	Voltage (V)	Inspection item(s)
A	Lock solenoid	Lock solenoid	Solenoid OFF	B+	•  Wiring harness (Lock solenoid—RFW CM) •  Lock solenoid
			Solenoid ON	1V or less
B	Ground	Body	—	1V or less	•  Wiring harness (B—ground)
C	Free solenoid	Free solenoid	Solenoid OFF	B+	•  Wiring harness (Free solenoid—RFW CM) •  Free solenoid
			Solenoid ON	1V or less
D	—	—	—	—	—
E	4x4 indicator light	4x4 indicator light	4x4 indicator light OFF	B+	•  Wiring harness (4x4 indicator light—RFW CM) •  4x4 indicator light
			4x4 indicator light ON	1V or less
F	Lock indicator light	Lock indicator light	Lock indicator light OFF	B+	•  Wiring harness (Lock indicator light—RFW CM) •  Lock indicator light
			Lock indicator light ON	1V or less
H	Battery	Battery	Engine switch ON	B+	•  Wiring harness, Fuse (Battery-Engine switch—RFW CM)
			Engine switch OFF	1V or less
I	RFW main switch	RFW main switch	RFW main switch reieased (OFF)	B+	•  Wiring harness (RFW main switch—RFW CM) •  RFW main switch
			RFW main switch depreased (ON)	1V or less
J	RFW switch	RFW switch	RFW switch OFF	B+	•  Wiring harness (RFW switch—RFW CM) •  RFW switch
			RFW switch ON	1V or less
K	4x4 indicator switch	4x4 indicator switch	4x4 indicator switch OFF	B+	•  Wiring harness (4x4 indicator switch—RFW CM) •  4x4 indicator switch
			4x4 indicator switch ON	1V or less
L	Transfer neutral switch	Transfer neutral switch	Transfer neutral switch OFF	B+	•  Wiring harness (Transfer neutral switch—RFW CM) •  Transfer neutral switch
			Transfer neutral switch ON	1V or less
