4x4 CONTROL MODULE REMOVAL/INSTALLATION [AT]

id0318008048d5

1.  Disconnect the negative battery cable.

2.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

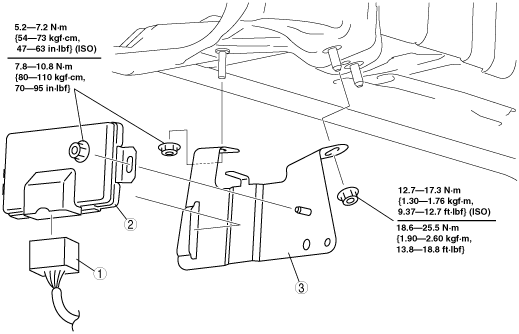

L.H.D.

abs0zw00000350

R.H.D.

abs0zw00000351

1	Connector
2	4x4 CM
3	Bracket
