REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4X2 (EXCEPT HIGH CLEARANCE MODEL)]

id041300800550

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

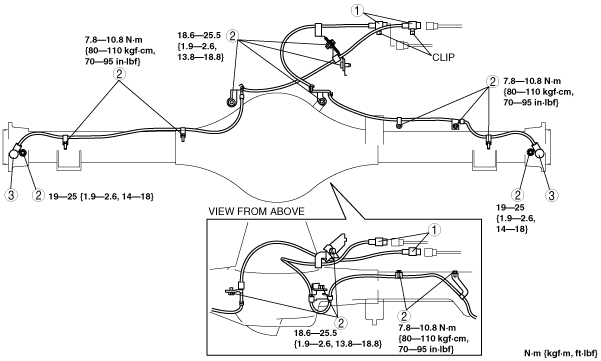

dbr413zwb012

1	Connector
2	Bolt
3	Rear ABS wheel-speed sensor
