FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [4x2 (HIGH CLEARANCE MODEL), 4X4]

id041300800751

1.  When removing the ABS wheel-speed sensor on the right side, remove the washer tank installation bolts and the connector, then move the washer tank to a place out of the way. (See WINDSHIELD WASHER TANK REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

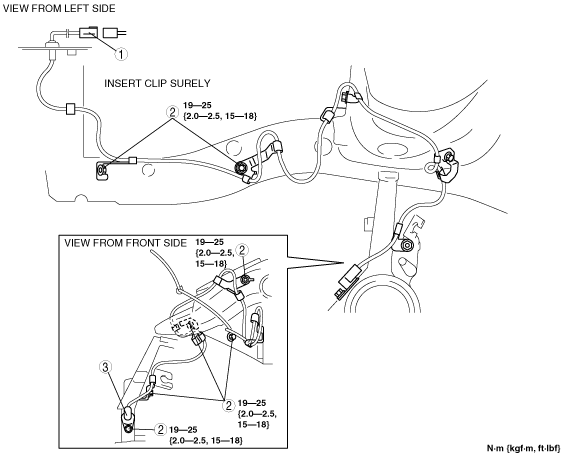

dbr413zwb009

1	Connector
2	Bolt
3	Front ABS wheel-speed sensor
