CLUTCH MASTER CYLINDER REMOVAL/INSTALLATION

id051000801400

Caution

•  Fluid will damage painted surfaces. Be careful not to spill any fluid on painted surfaces. If it is spilled, wipe it off immediately.

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Bleed the air from the system.

(See CLUTCH FLUID AIR BLEEDING/REPLACEMENT.)

4.  Inspect and adjust the clutch pedal.

(See CLUTCH PEDAL INSPECTION/ADJUSTMENT.)

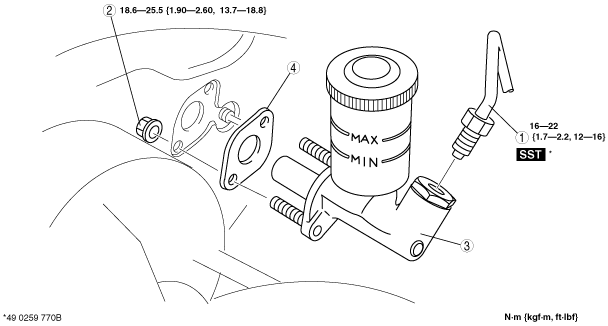

M15M-D, R15M-D, R15MX-D

absggw00001225

1	Clutch pipe
2	Nut
3	Clutch master cylinder
4	Packing

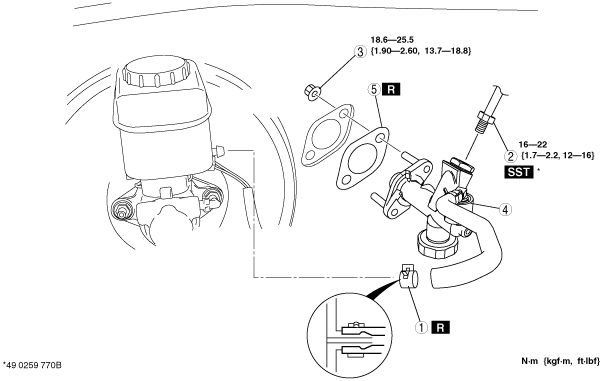

S15M-D, S15MX-D

absggw00001226

1	Hose clip
2	Clutch pipe
3	Nut
4	Clutch master cylinder
5	Packing
