DOUBLE CONE SYNCHRONIZER MECHANISM STRUCTURE [R15M-D, R15MX-D (WLT-1, WLT-2)]
id051117102800
Features
• A double cone synchronizer mechanism is used for the 2nd gear.
• The double cone synchronizer mechanism is a compact device capable of heavy duty meshing.
• The synchro mechanism reduces meshing time and improves operation.
• The double cone synchro mechanism includes a synchronizer ring, a double cone, and an inner cone.
Structure

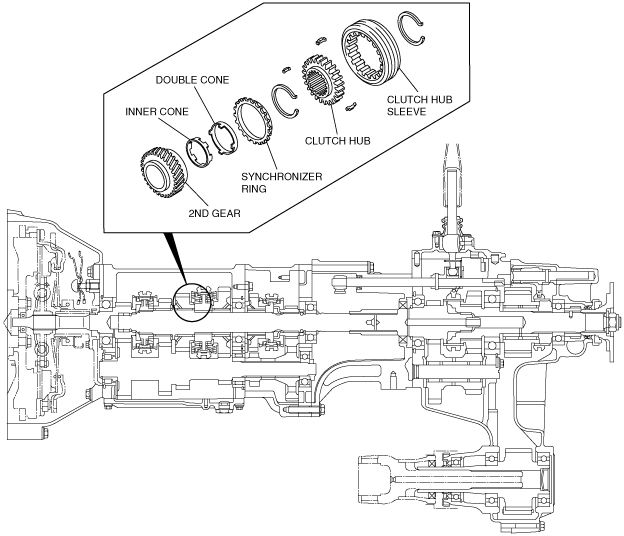

Structural view (4x2)

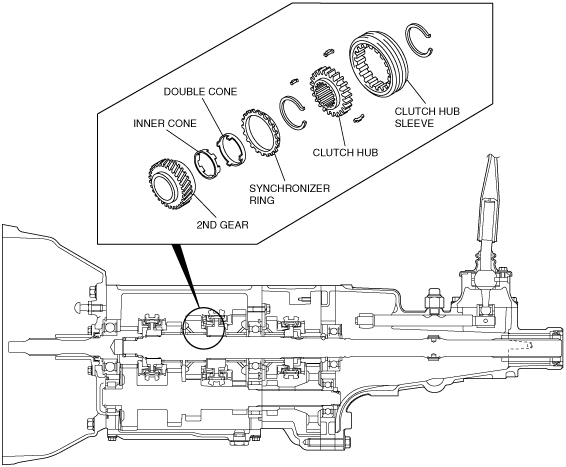

Structural view (4x4)
