SELECTOR CABLE REMOVAL/INSTALLATION

id051400256200

1.  Disconnect the negative battery cable.

2.  Remove the console. (See CONSOLE REMOVAL/INSTALLATION.)

3.  Shift the selector lever to the P position.

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

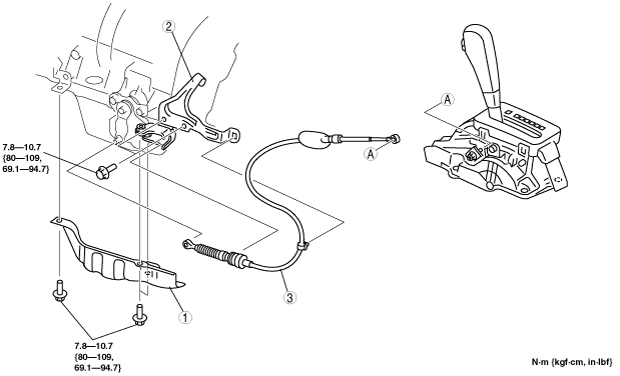

arnffw00001929

1
Digital TR sensor insulator
2
Selector cable bracket
3
Selector cable
(See Selector Cable Installation Note.)


Selector Cable Installation Note

1.  Shift the selector lever to the N position.

2.  Loosen the nut at approx. 90°.

3.  Adjustment the end of the selector cable position.

absggw00001019

4.  Tighten the nut.

Tightening torque
9.8—18.2 N·m {100—185 kgf·cm, 87—161 in·lbf}
