POWER STEERING OIL PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-C, WE-C]
id0614008007f4
1. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-C, WE-C].)
2. Remove the clip shown in the figure.
absggw00001636
|

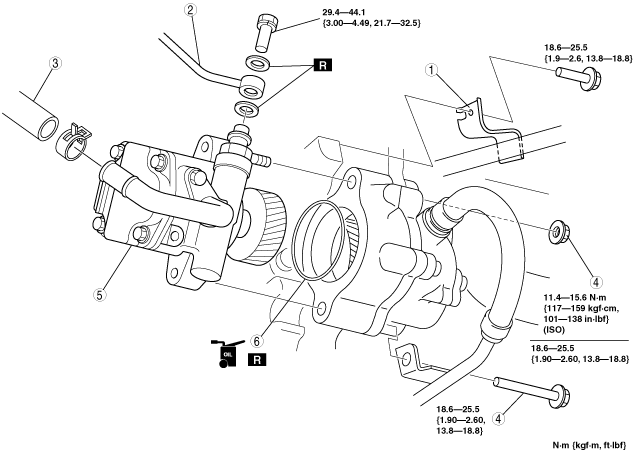

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
abs0zw00000366
|
|
1
|
Bracket
|
|
2
|
Pressure pipe
|
|
3
|
Return hose
|
|
4
|
Bolt and nut
|
|
5
|
Power steering oil pump
|
|
6
|
O-ring
|
